51 24 126 Removing and installing/replacing left or right striker for rear lid lower section

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1).

Installation:

Catches on trim (1) must not be damaged.

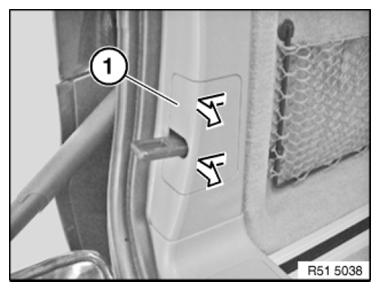

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove striker (2).

Installation:

Adjust REAR LID LOCK .

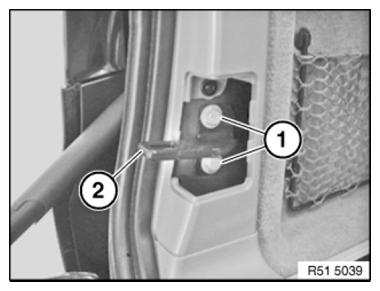

Fig 2: Identifying Rear Lid Lower Section Striker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
