51 24 015 Adjusting rear lid lock for rear lid lower section

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Precondition:

LOWER REAR LID SECTION correctly adjusted to fit.

Unclip trim (1) on left/right.

Installation note:

Catches on trim (1) must not be damaged.

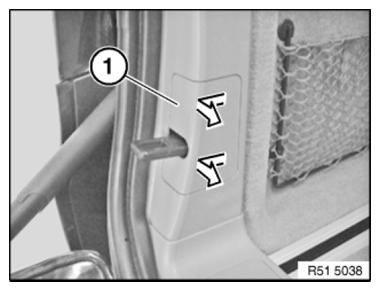

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Close lower rear lid section (3) and make sure it is correctly engaged in striker (1) on left/right.

Loosen left/right screws (2).

Press on lower rear lid section (3) until mucket (4) of rear lid (3) is slightly compressed.

Tighten down screws (2).

Tightening torque 51 24 3AZ .

Check closing comfort, repeat procedure if necessary.

Observe 41 00... BODY GAP DIMENSIONS

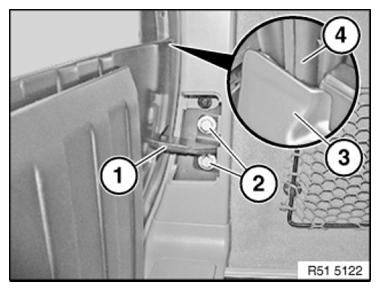

Fig 2: Identifying Lower Rear Lid Section, Striker, Mucket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: No grating noises must be heard when the closed rear lid is pressed slightly.

Version with reversing camera:

After adjusting, CALIBRATE reversing camera.
