51 12 828 Removing and installing/replacing left or right guide for rear bumper
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR BUMPER TRIM .
- Remove BUMPER SIDE SECTION .

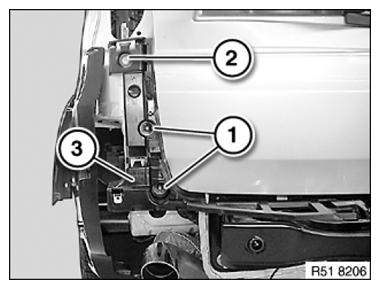

Unscrew nuts (1).
If necessary, release nut (2).
Remove guide (3).
Tightening torque 51 12 5AZ .
