51 12 157 Replacing rear bumper trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR BUMPER TRIM .

Version with Park Distance Control (PDC):

Remove ULTRASONIC TRANSDUCER .

Unclip wiring harness (1) at points (2).

Installation:

Check wiring harness for damage, replace if necessary.

Make sure wiring harness is correctly seated.

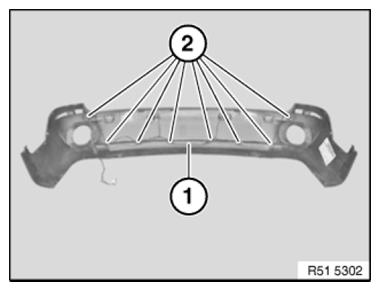

Fig 1: Identifying Ultrasonic Transducer Wiring Harness Removal Points

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Depending on engine version, install thermal protection (1).

Attach thermal protection (1) to bumper trim (2) and secure with retainers (3).

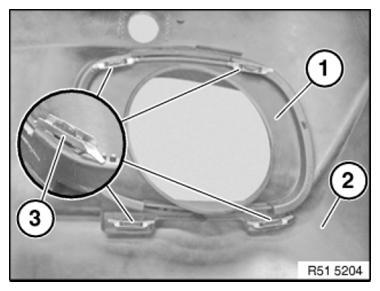

Fig 2: Identifying Thermal Protection, Bumper Trim And Retainers
