67 63 550 Replacing blower motor - 3rd seat row
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove complete ELECTRIC AUXILIARY HEATER

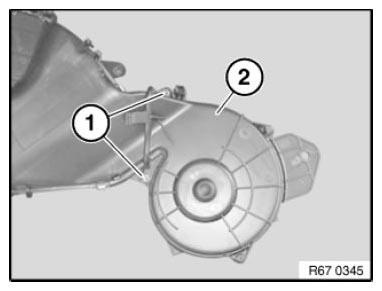

Release screws (1).
Remove blower motor (2) and disconnect associated plug connection.
