72 11 096 Removing and installing/replacing rear left or right lower strap fitting

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Left lower strap fitting only: Remove SEAT FABRIC
Right lower strap fitting only: Remove INNER FOLLOWER TRIM

Lower strap fitting, left:

Release screw (1).

Tightening torque 72 11 27AZ .

Remove lower strap fitting (2).

Installation:

Lower strap fitting is coded to prevent incorrect installation.

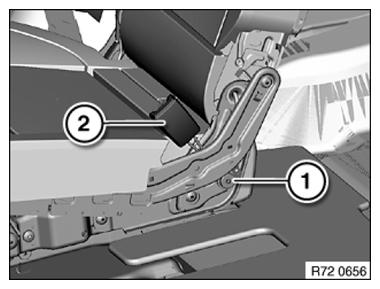

Fig 1: Identifying Left Lower Strap Fitting And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lower strap fitting, right:

Release screw (1).

Tightening torque 72 11 27AZ .

Remove lower strap fitting (2).

Installation:

Lower strap fitting is coded to prevent incorrect installation.

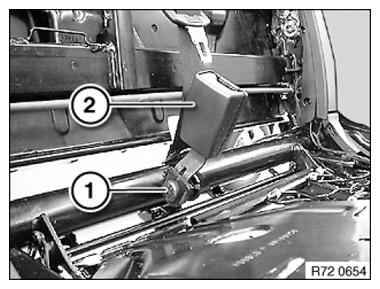

Fig 2: Identifying Right Lower Strap Fitting And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Remove REAR SEAT

Lower strap fitting, right:

Release screw (1).

Tightening torque 72 11 22AZ .

Remove lower strap fitting (2).

Installation:

Lower strap fitting is coded to prevent incorrect installation.

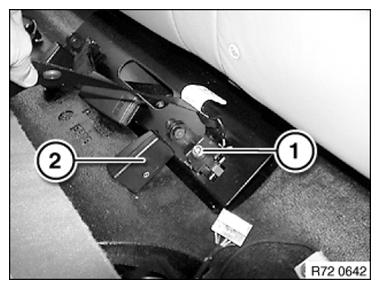

Fig 1: Identifying Right Lower Strap Fitting And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lower strap fitting, left:

Release screw (1).

Tightening torque 72 11 22AZ .

Remove lower strap fitting (2).

Installation:

Lower strap fitting is coded to prevent incorrect installation.

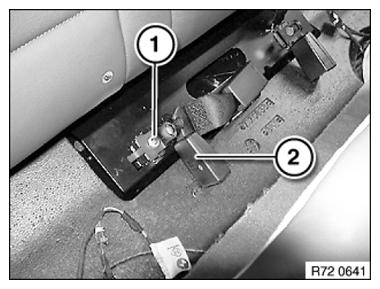

Fig 2: Identifying Left Lower Strap Fitting And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
