65 12 350 Removing and installing/replacing fan (left side panel)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove luggage compartment trim on left side panel. Refer to 51 47 210 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON LEFT SIDE PANEL .

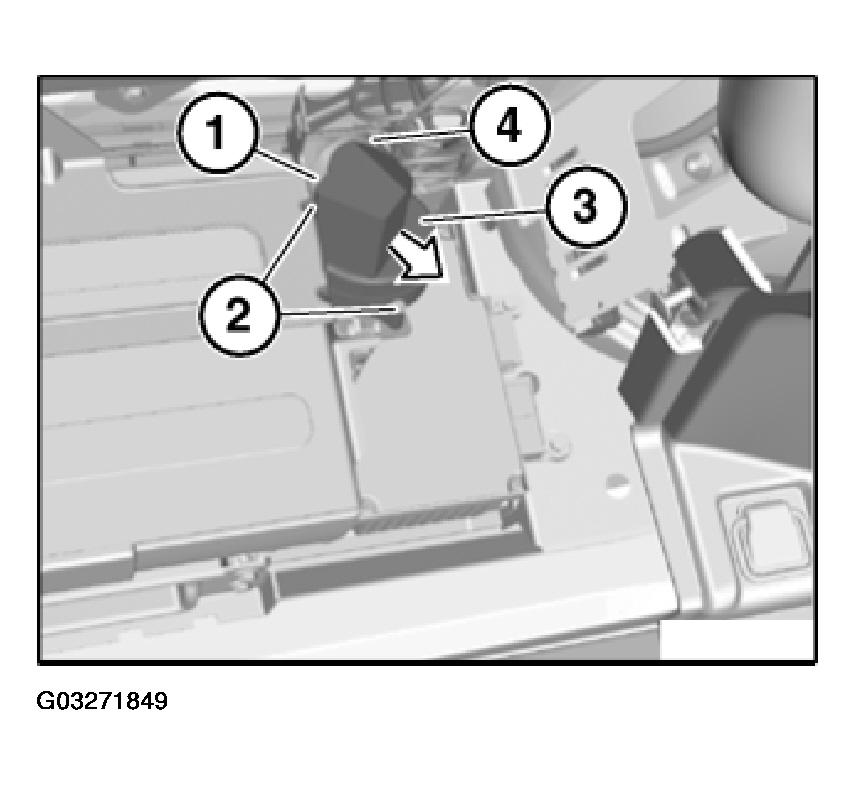

Disconnect plug connection (1).
Loosen screws (2).
Remove fan (3) in direction of arrow from sleeve (4).
Installation:
Make sure fan (3) is correctly seated on sleeve (4).
