51 47 210 Removing and installing/replacing trunk trim panel on left side panel

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Open rotary clips (1) and remove.

Feed out luggage compartment trim on left side panel (2) in direction of arrow and remove.

Installation:

Correctly feed in guides (3) of luggage compartment trim on left side panel (2).

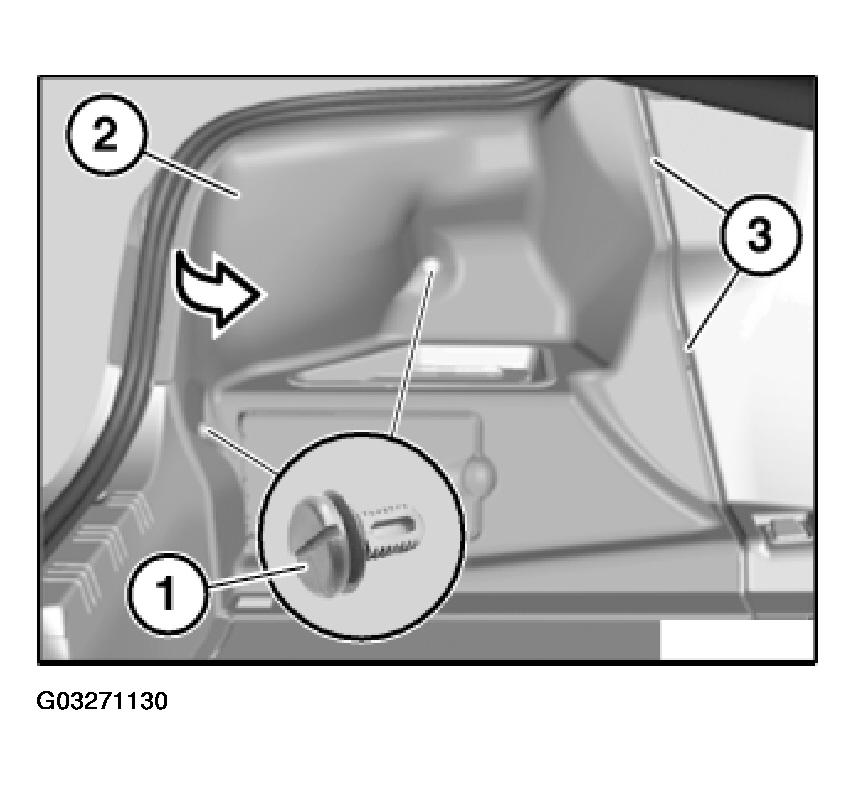

Fig 1: View Of Rotary Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, unclip storage compartment (1) all round and remove in direction of arrow from luggage compartment trim on left side panel (2).

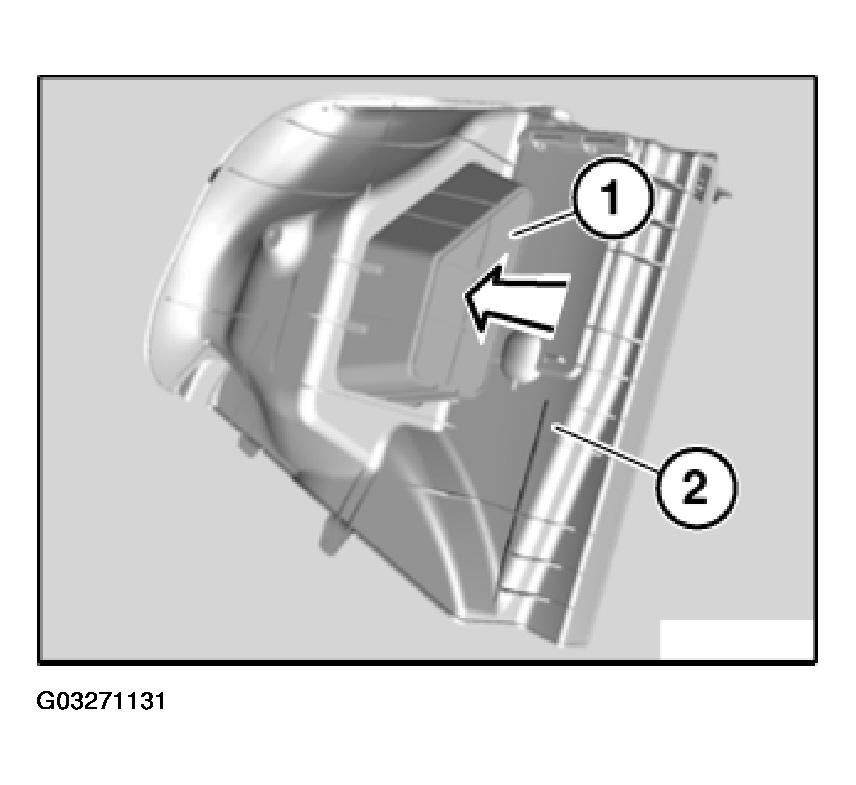

Fig 2: Identifying Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
