66 54 005 Removing and installing control unit for night vision system

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove trim for instrument panel on right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

Disconnect plug connection (1).

Press tab (2) to side and remove control unit (3) from module carrier.

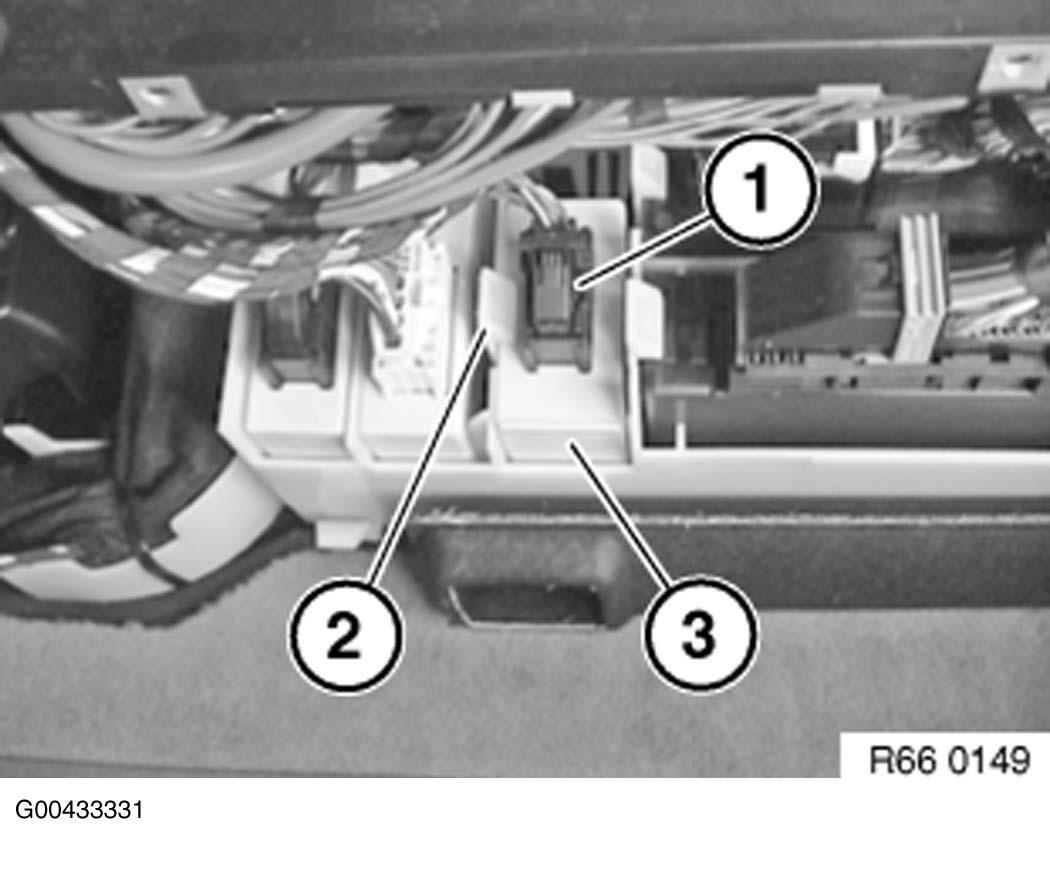

Fig 1: Locating Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

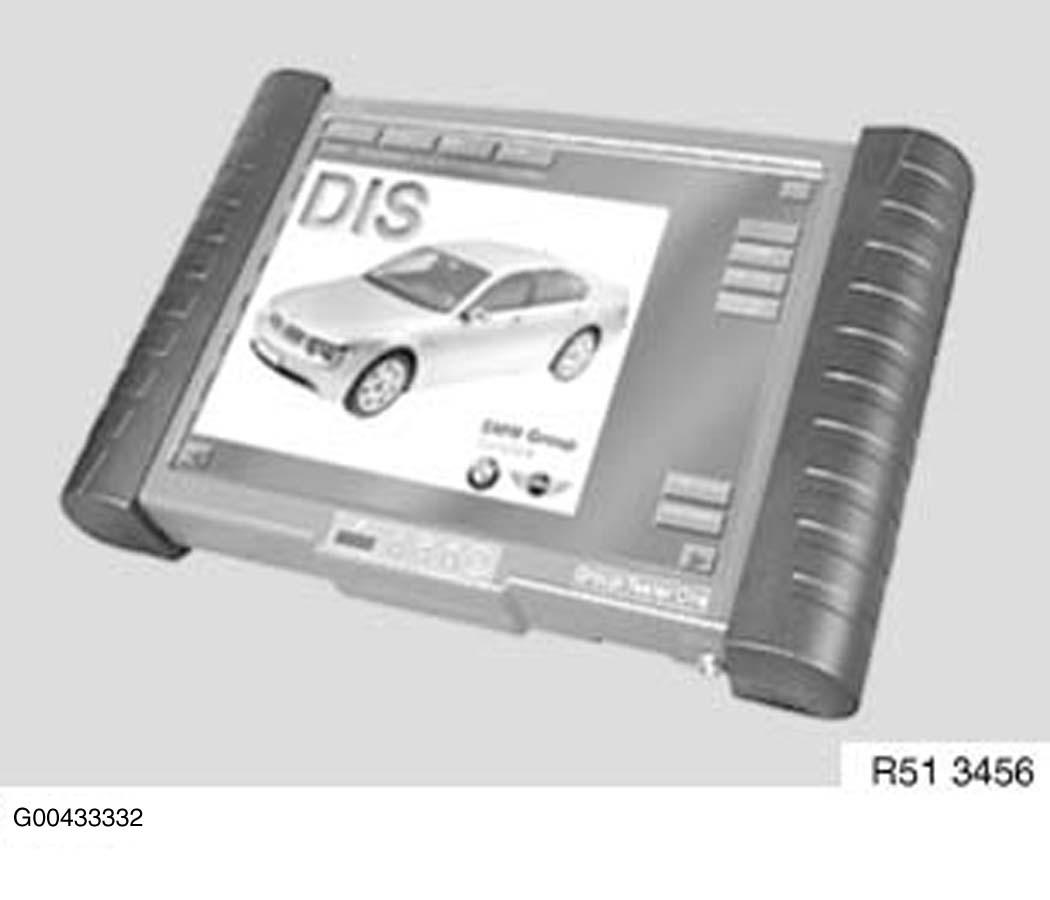

Fig 2: View Of DIS Programming

Courtesy of BMW OF NORTH AMERICA, INC.
