51 45 181 Removing and installing/replacing bottom right trim for instrument panel

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

NOTE: Move front passenger seat completely towards rear.

Drive bottom trim (1) towards rear with special tool 00 9 317 and remove.

Installation:

Make sure bottom trim (1) is correctly seated at retaining points (2).

Feed bottom trim (1) correctly into bottom right trim for instrument panel (3).

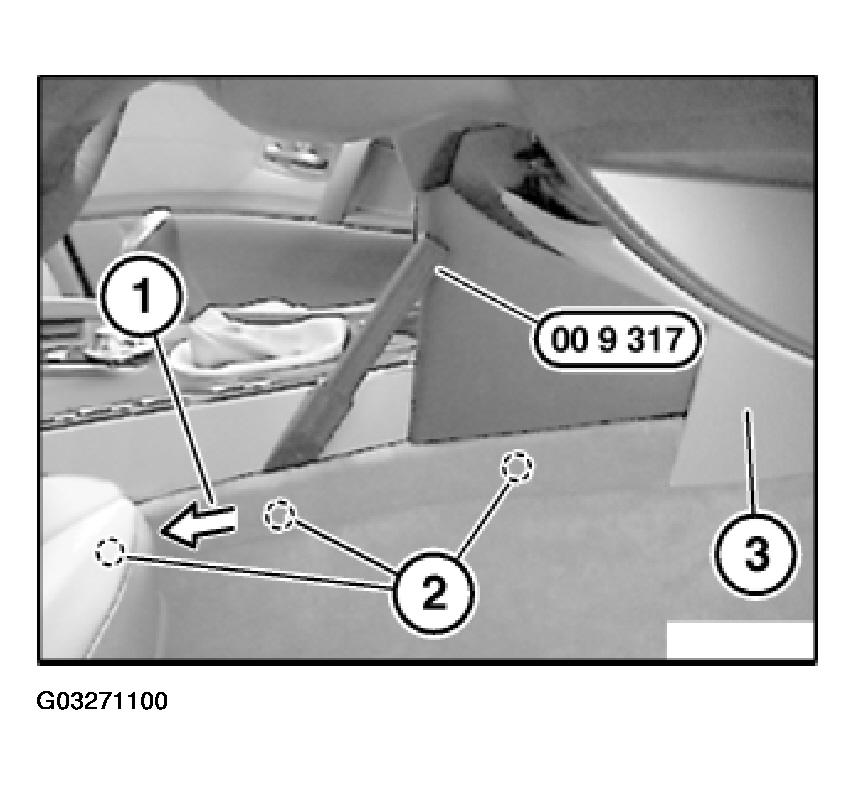

Fig 1: Removing Trim Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

IMPORTANT: Carefully remove bottom right trim for instrument panel.

Move bottom right trim for instrument panel (2) slightly forwards and feed out towards rear.

Disconnect plug connection of footwell light (3).

Remove bottom right trim for instrument panel (2).

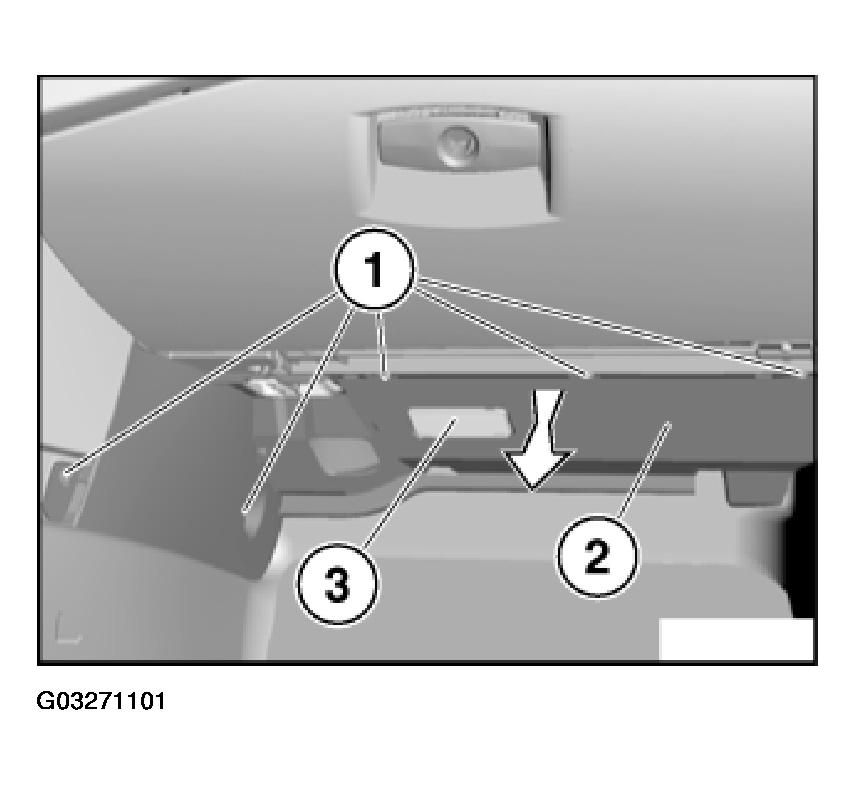

Fig 2: Identifying Bottom Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounts (1) and guides (2) of bottom right trim for instrument panel (3) must not be damaged.

Make sure mounts (1) are correctly seated.

Replacement:

Remove footwell light (4). Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

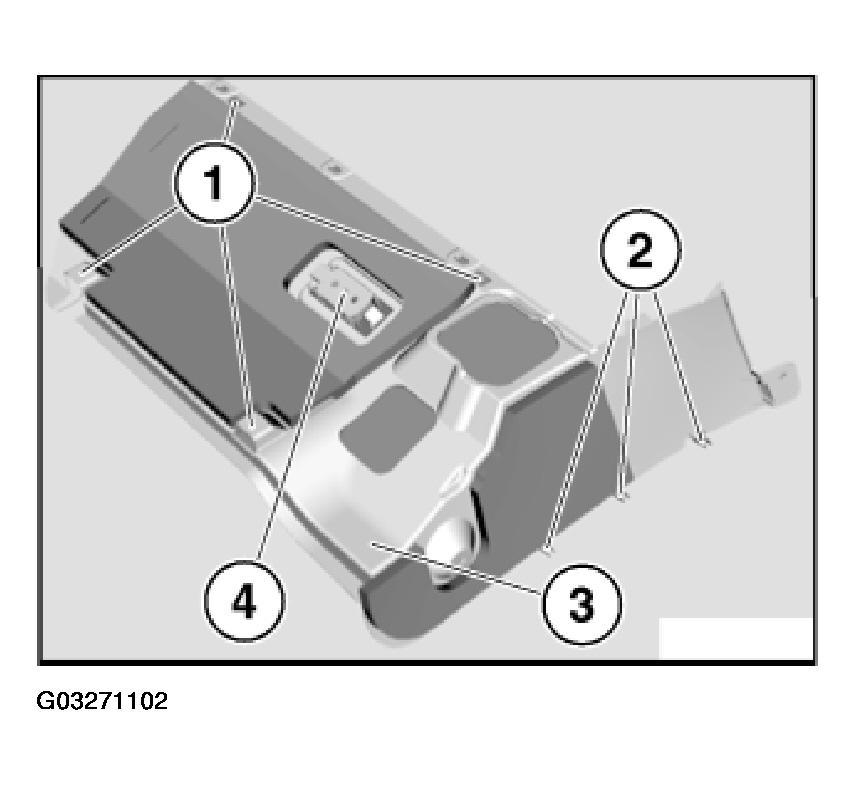

Fig 3: Identifying Mounts And Guides Of Bottom Trim
Courtesy of BMW OF NORTH AMERICA, INC.
