65 11 220 Removing and installing satellite radio (US version only)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Follow instructions for handling optical fibres, refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Disconnect negative battery cable, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment wheel arch trim on side panel, refer to 51 47 220 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON RIGHT SIDE PANEL .

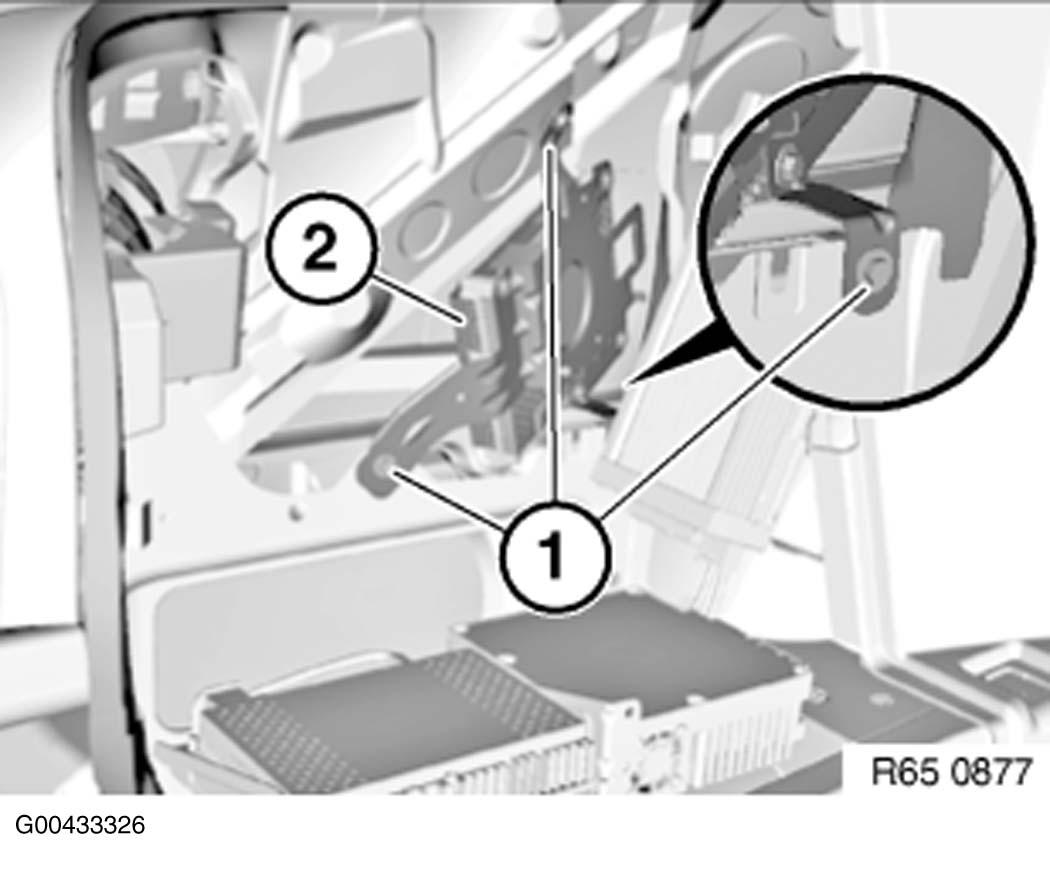

Release screws (1).

Remove satellite radio (2) with bracket and disconnect associated plug connection.

Fig 1: Locating Satellite Radio With Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

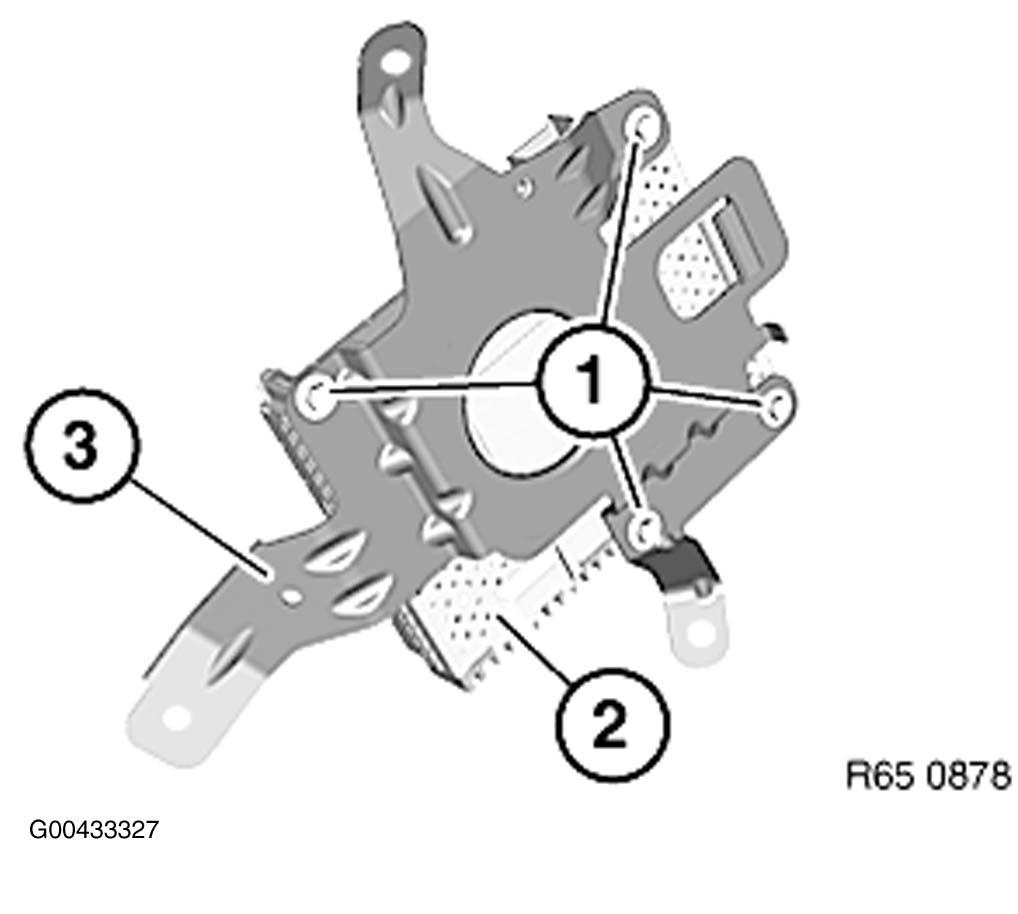

Release screws (1) and remove satellite radio (2) from bracket (3).

Fig 2: Identifying Satellite Radio Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.
