51 47 220 Removing and installing/replacing trunk trim panel on right side panel
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove luggage compartment floor trim panel. Refer to51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

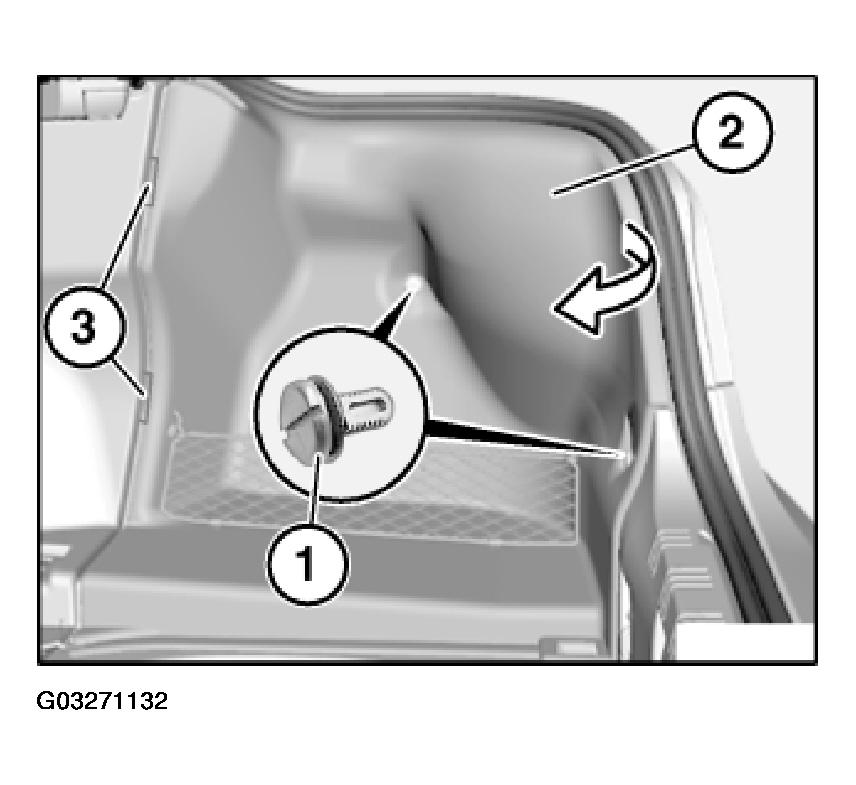

Open rotary clips (1) and remove.
Feed out luggage compartment trim on right side panel (2) in direction of arrow and remove.
Installation:
Correctly feed in guides (3) of luggage compartment trim on right side panel (2).
