65 77 730 Removing and installing (replacing) vehicle center sensor
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
WARNING:
Note airbag safety instructions! Incorrect handling can activate airbag and cause injury.
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary Preliminary Tasks:
- Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
NOTE:

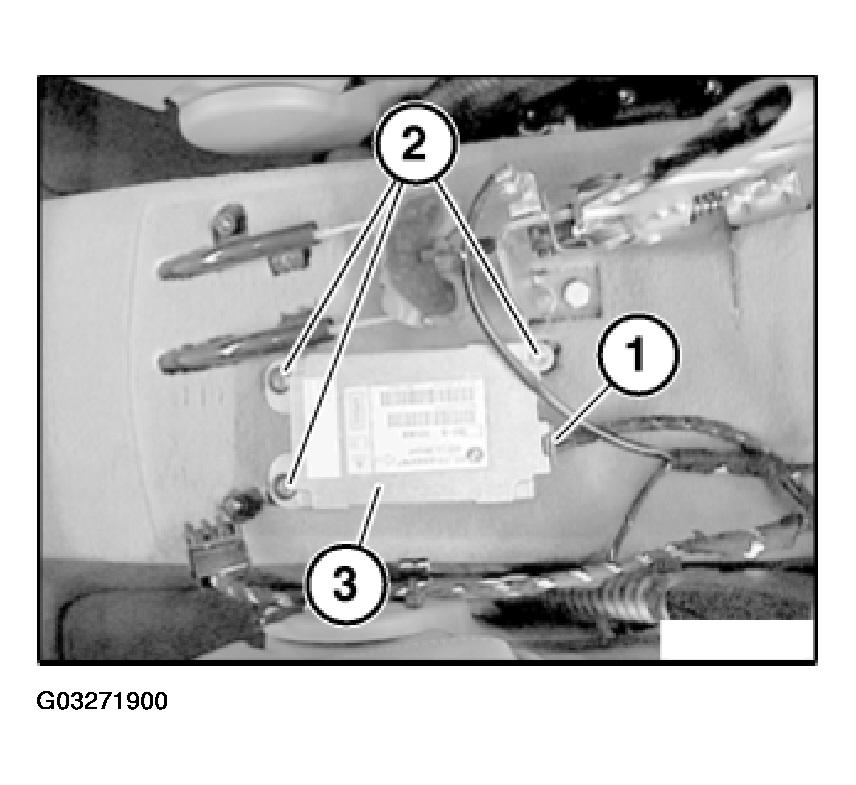

Middle rear compartment ventilation duct shown removed for purposes of clarity.
Unfasten plug connection (1) and disconnect.
Release screws (2). Tightening torque, refer to 65 77 6AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - E60 .
Remove vehicle center sensor (3).
Replacement:
Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
