65 20 150 Removing and installing/replacing back-up antenna
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove panel for parcel shelf. Refer to 51 46 006 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

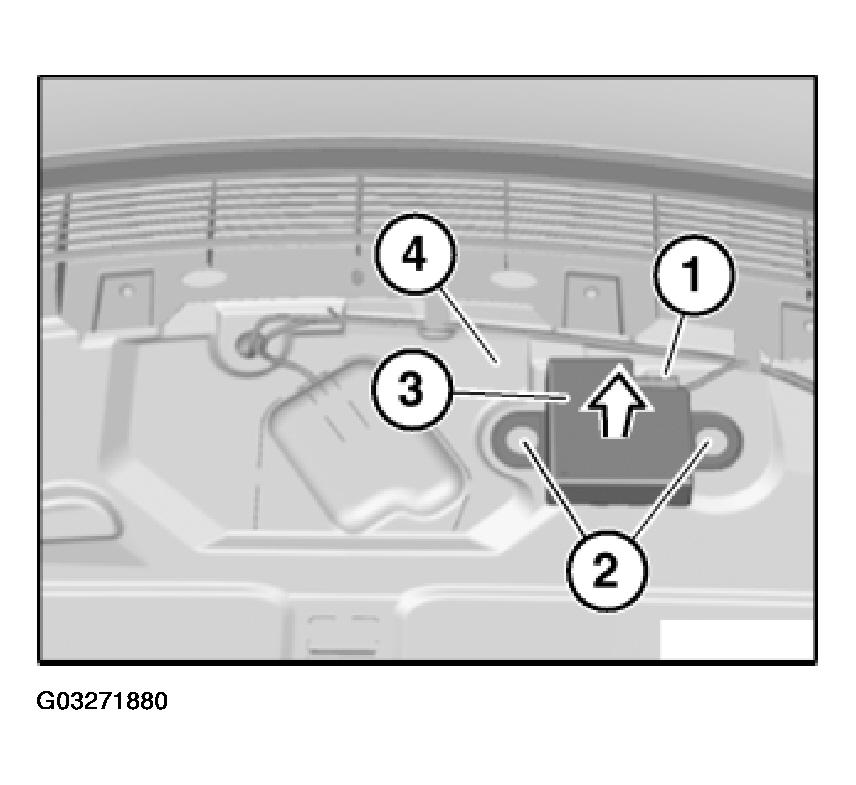

Unfasten plug connection (1) and disconnect.
Loosen screws (2).
Remove back-up antenna (3) towards top from parcel shelf (4).
