32 41.. Instructions for using special tool 32 4 000

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

= Connection Pump.
= Connection steering gear.

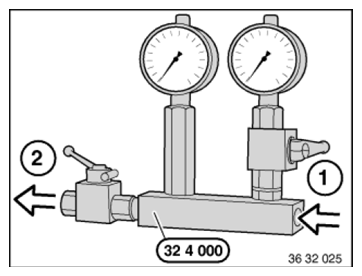

Fig 1: Identifying Special Tool (32 4 000)
Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to 32 4 000 special tool.

Mount special tool 32 4 011 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 / 32 4 012 to special tool 32 4 000 and connect pressure hose with banjo bolt M14 x 1.5 and 2 sealing rings.

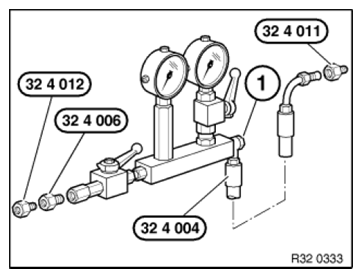

Fig 2: Connecting Special Tool (32 4 012), (32 4 006), (32 4 004) And (32 4 011) To Pressure Hose Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 banjo bolt:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Mount special tool 32 4 005 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 to special tool 32 4 000 and connect pressure hose with banjo bolt M16 x 1.5 and 2 sealing rings.

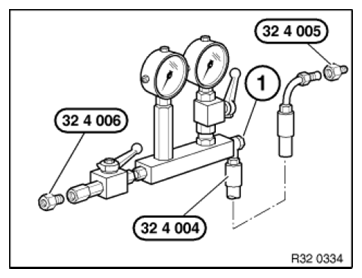

Fig 3: Connecting Special Tool (32 4 005) At Pump Screw Special Tool (32 4 004)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 retaining screw:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to 32 4 000 .

Mount special tool 32 4 004 to pump.

Mount special tool 32 4 006 / 32 4 005 to special tool 32 4 000 and connect pressure hose.

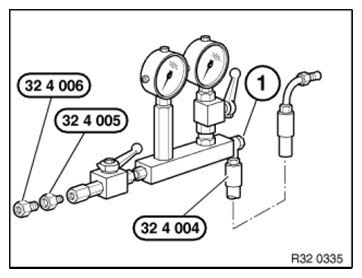

Fig 4: Connecting Special Tool (32 4 004) On Pump

Courtesy of BMW OF NORTH AMERICA, INC.
