32-4000 Device

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0492057 324000 Device MW

NOTE: For checking the pump pressure on the hydraulic steering [Released]

Consisting of:

11 = 0494385 Adapter
NOTE: (Adapter M14 x 1.5) [Released]
12 = 0494386 Adapter
NOTE: (Adapter M16 x 1.5) [Released]

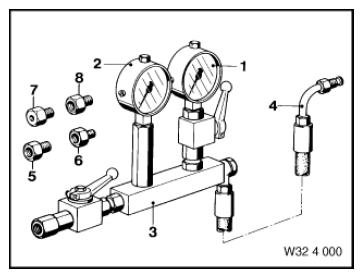

Fig 1: Identifying Device (0492057)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0492058 Pressure gauge
NOTE: (Pressure gauge 16 bar) [Released]
3 = 0492060 Device
NOTE: (Testing device without pressure gauge) Discontinued, only available via complete tool [Not available separately]
5 = 0492062 Connector
NOTE: For screwing into the power steering pump / Series: E23, E46, E52, E53, E64, E65, E66, E85 [Released]
6 = 0492063 Connector
NOTE: For screwing into testing device 32 4 003 / Model series: E23, E46, E52, E53, E64, E65, E66, E85 [Released]
7 = 0492064 Connector
NOTE: (Connection piece M18 x 1.5) For screwing into pressure regulator / Model series: E32, E34 [Released]
8 = 0492065 Connector
NOTE: (Connection piece M14 x 1.5) For screwing into testing device / Model series: E32, E34 Discontinued, only available via complete tool [Not available separately]
9 = 0493264 Valve
NOTE: (Ball valve) Discontinued, only available via complete tool [Not available separately]
2 = 0492059 Pressure gauge
NOTE: (Pressure gauge 160 bar) [Released]
4 = 0492061 Line
NOTE: [Released]
