64 11 902 Replacing sensor fan for interior temperature
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove control panel for heater - A/C system. Refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .

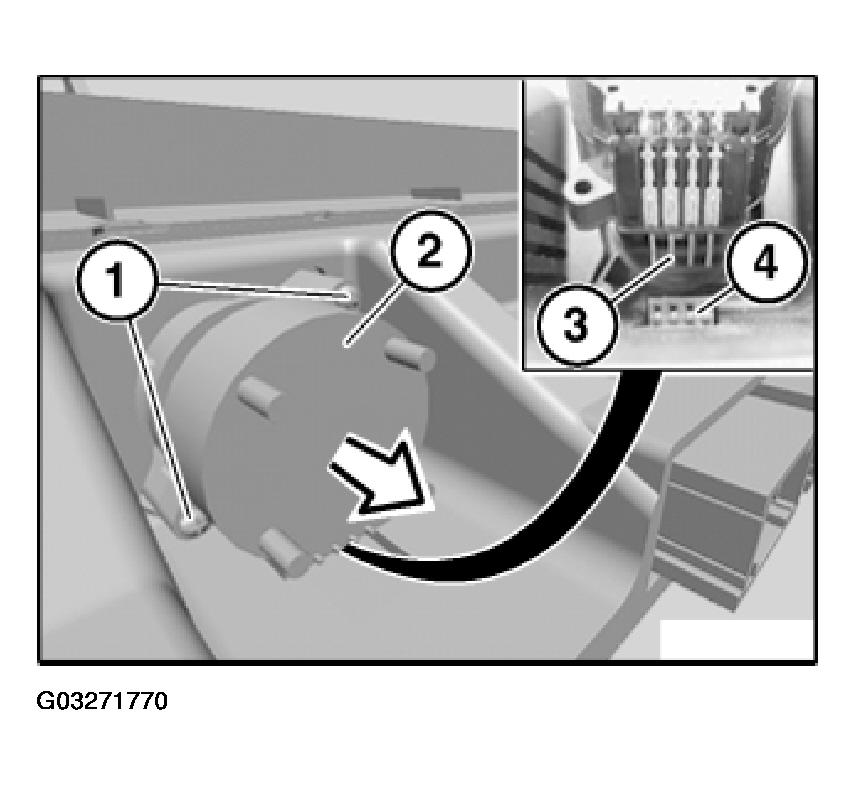

Release screws (1).
Pull out sensor blower for interior temperature (2) in direction of arrow.
Installation:
Make sure pins (3) are correctly seated in base (4).
