64 11 377 Removing and installing (replacing) control panel for heater - A/C system

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove middle trim for instrument panel. Refer to 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTER TRIM FOR INSTRUMENT PANEL .

Release screws (1).

Unclip control panel for heater - A/C system (2) all round and remove from middle trim for instrument panel (3).

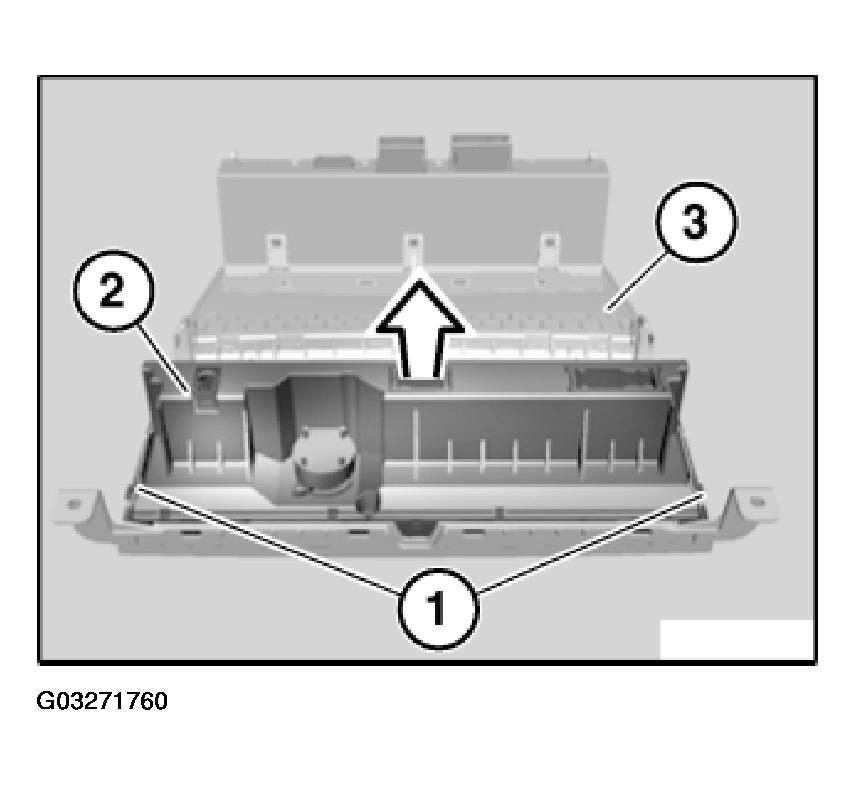

Fig 1: View Of Heater - A/C System Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
