63 99 445 Replacing bulb for mirror light

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Necessary Preliminary Tasks:

Remove mirror light. Refer to 63 31 050 REMOVING AND INSTALLING/REPLACING MIRROR LIGHT .

Spread bow contacts (1) and remove bulb.

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

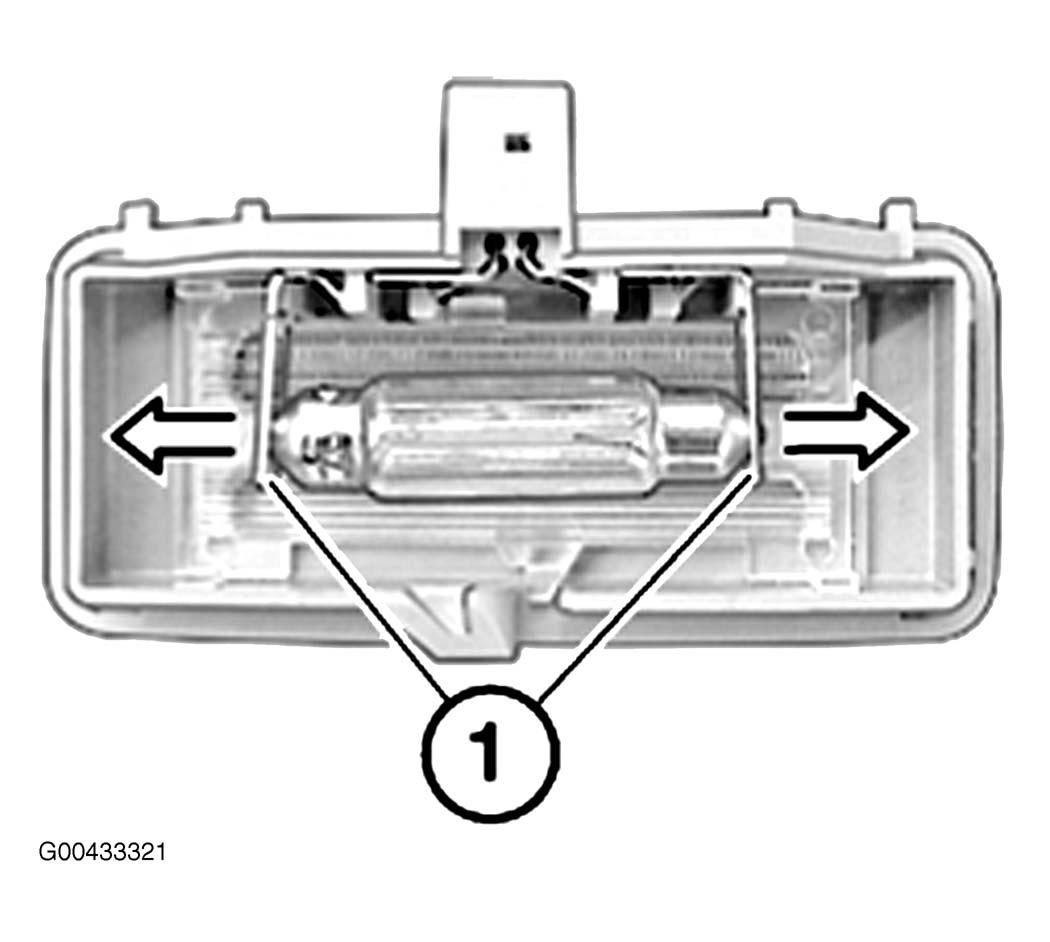

Fig 1: Locating Bow Contacts In Mirror Light

Courtesy of BMW OF NORTH AMERICA, INC.
