63 31 050 Removing and installing/replacing mirror light
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .
Replacement:
If necessary, convert bulb.

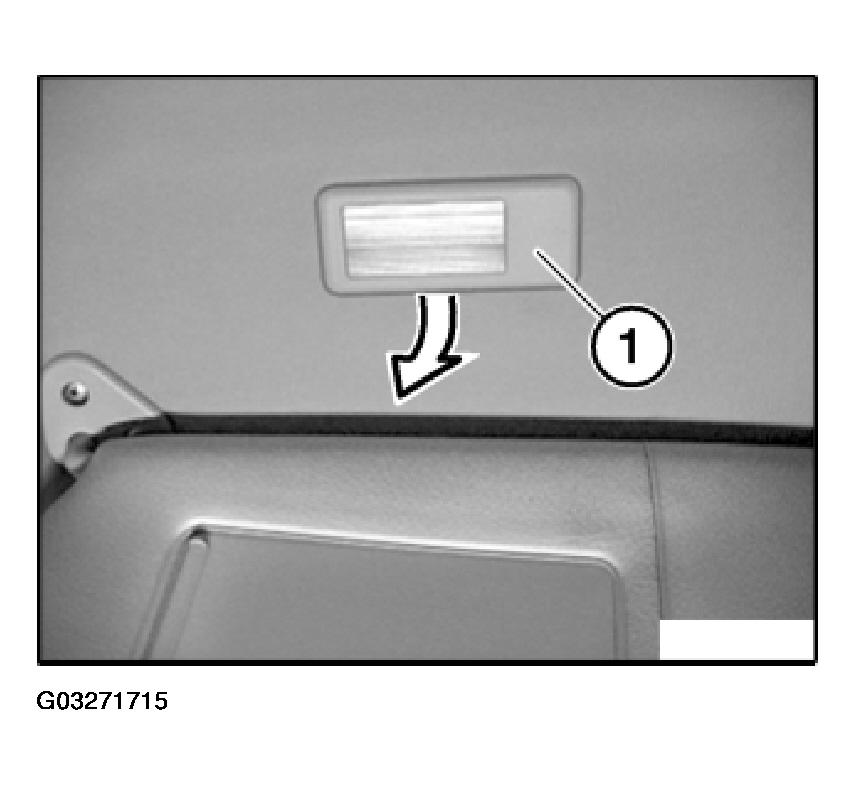

Lever front mirror light (1) in direction of arrow.
Disconnect plug connection underneath and remove mirror plate light (1).
Replacement:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
