63 99 437 Replacing light bulb for footwell light
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .
Necessary Preliminary Tasks:
- Remove footwell light. Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

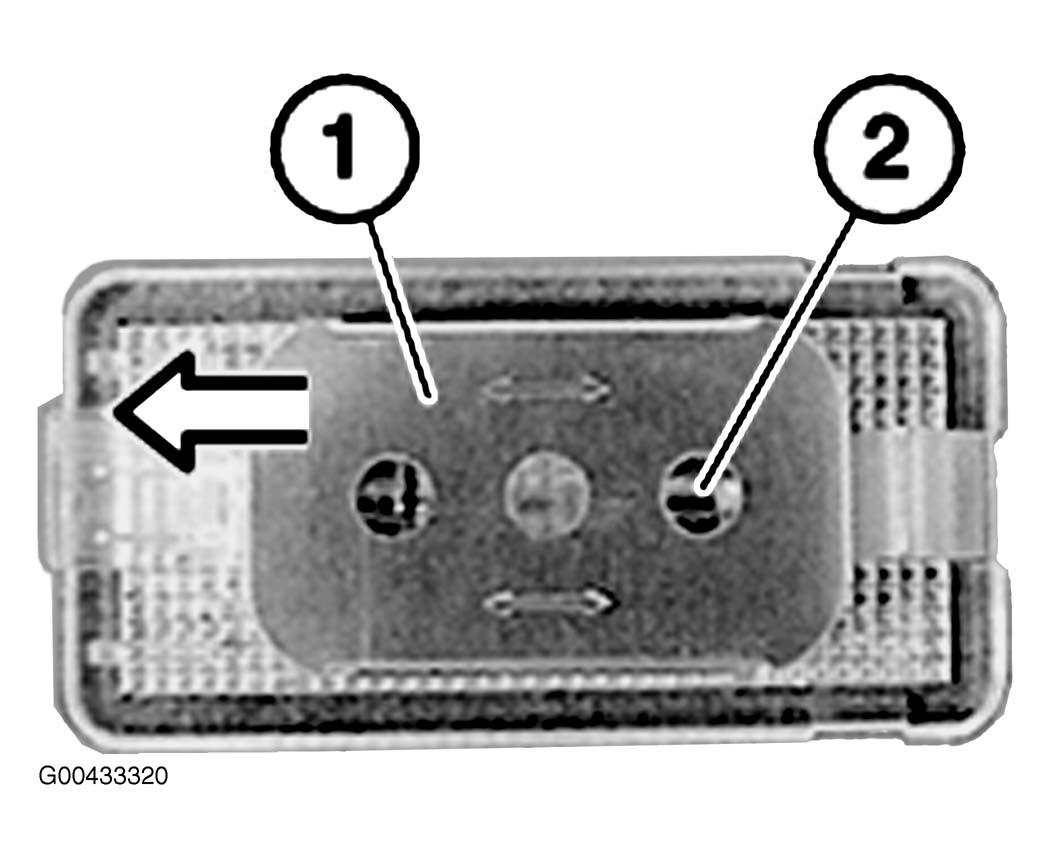

Move lens cover (1) in direction of arrow and remove.
Remove festoon (2) underneath.
Installation:
Note bulb type. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
