63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.

In footwell:

Lever out footwell light (1) with special tool 64 1 020 as illustrated.

Disconnect associated plug connection and remove footwell light (1).

Replacement:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

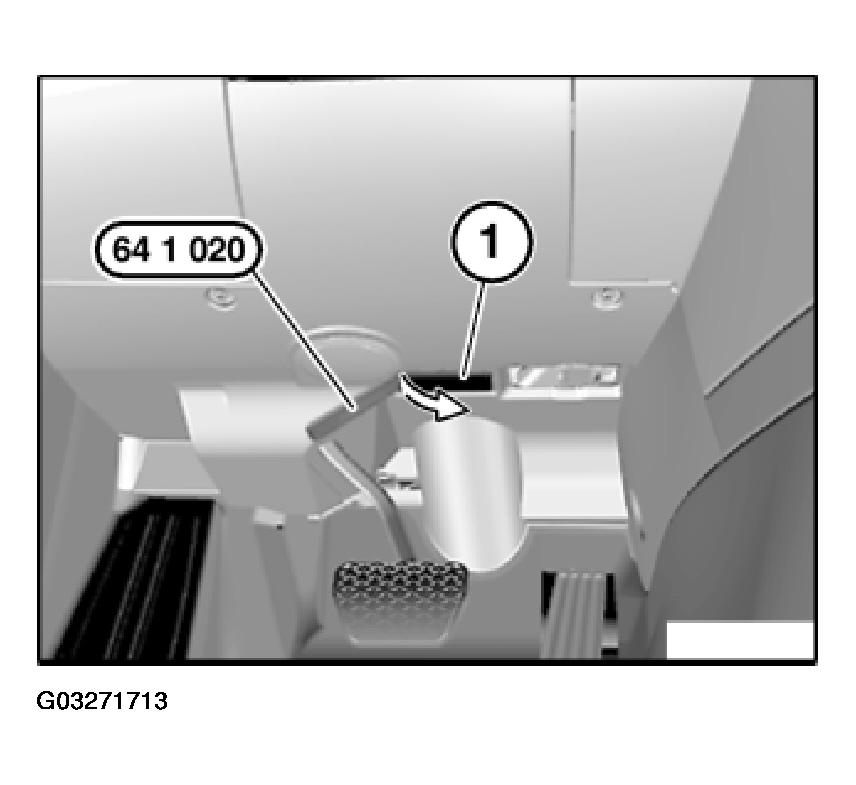

Fig 1: Locating Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

On underside of door:

Lever out footwell light (1) with special tool 64 1 020 as illustrated.

Disconnect associated plug connection and remove footwell light (1).

Replacement:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

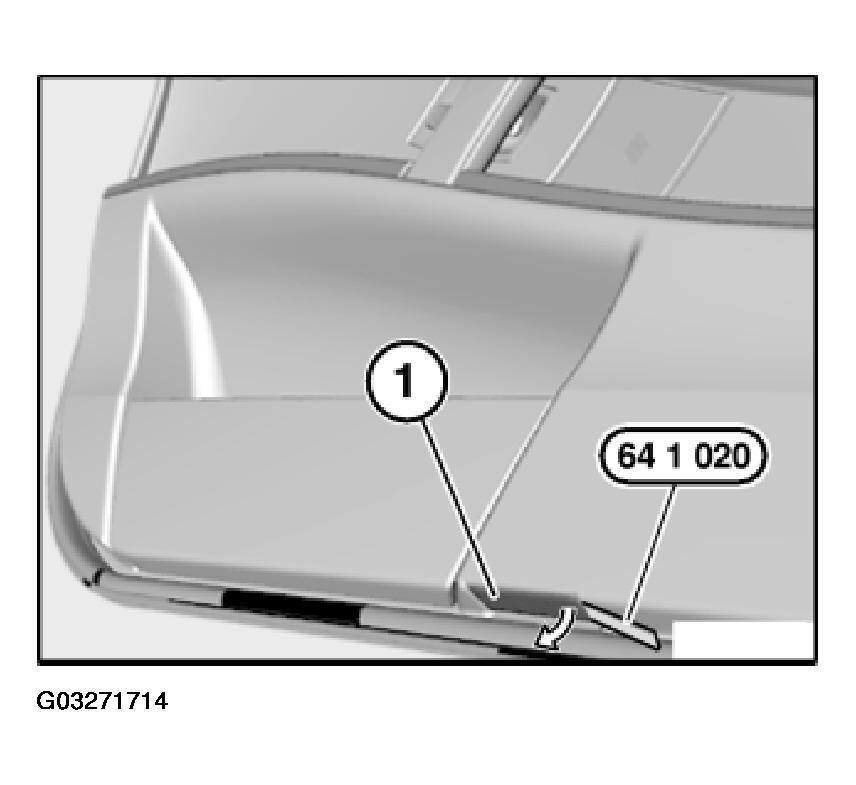

Fig 2: Removing Footwell Light Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
