63 99 437 Replacing bulb for footwell light (underside of door)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Necessary Preliminary Tasks:

Remove footwell light. Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

Remove bulb (1) in direction of arrow.

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

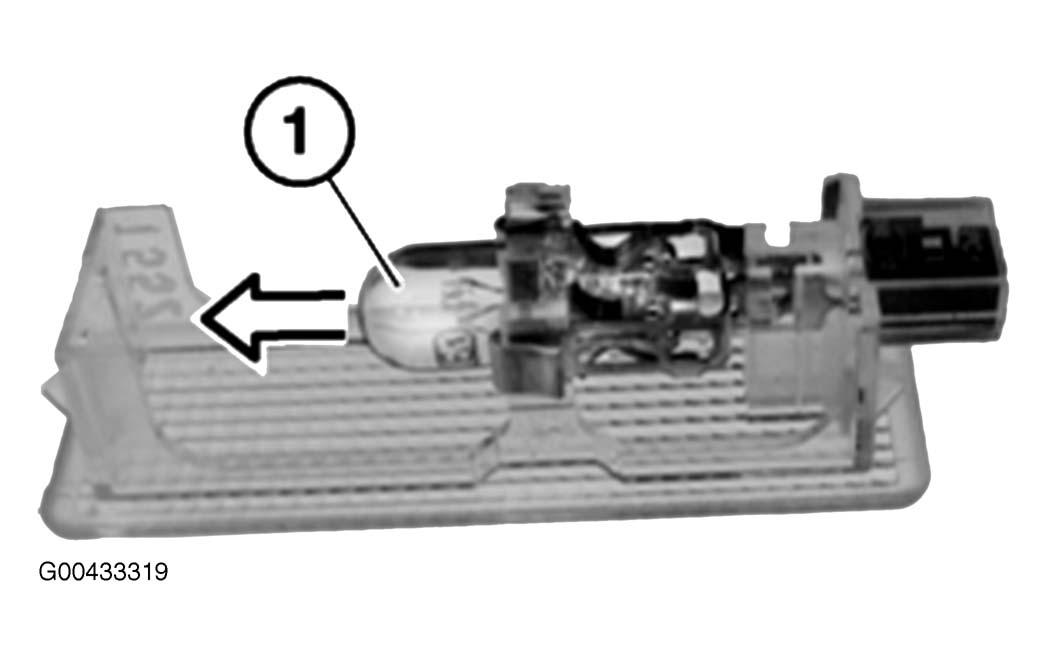

Fig 1: Identifying Footwell Light Bulb (Underside Of Door)

Courtesy of BMW OF NORTH AMERICA, INC.
