63 12 950 Replacing a lower holder for headlight mounting
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove headlight. Refer to 63 12 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

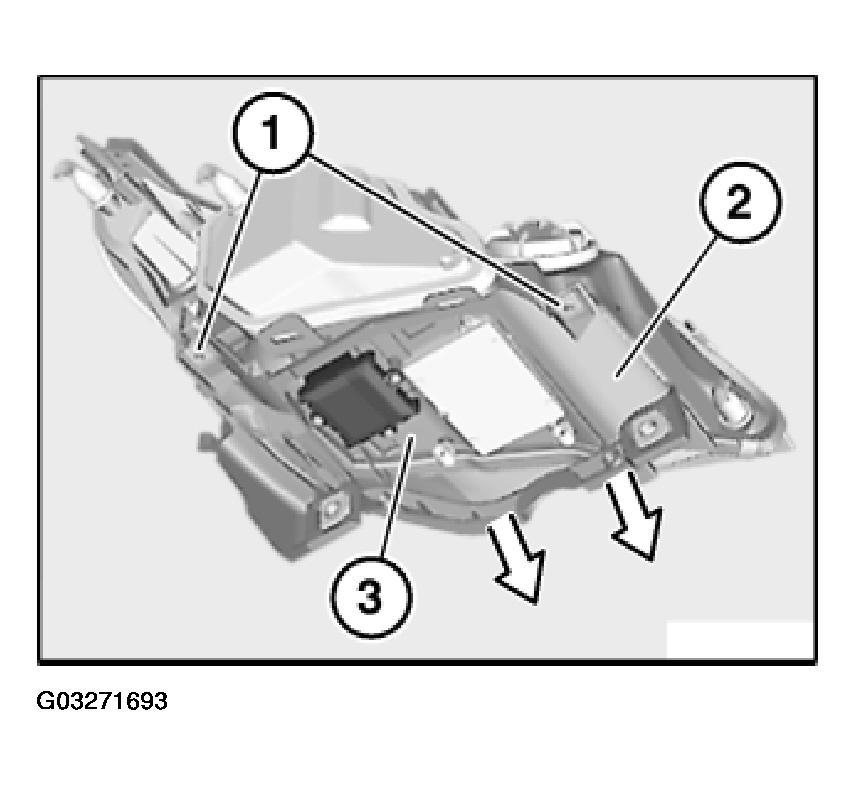

Release screws (1).
Remove holder (2) in direction of arrow from headlight (3).
Installation:
Screws (1) are also used for gap adjustment.
