63 12 860 Replacing control unit for left xenon headlight

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal. Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary Preliminary Tasks:

Remove left headlight. Refer to 63 12 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

Release screws (1).

Remove control unit for xenon headlight (2) from headlight (3). Refer to 63 12 860 REPLACING CONTROL UNIT FOR LEFT XENON HEADLIGHT .

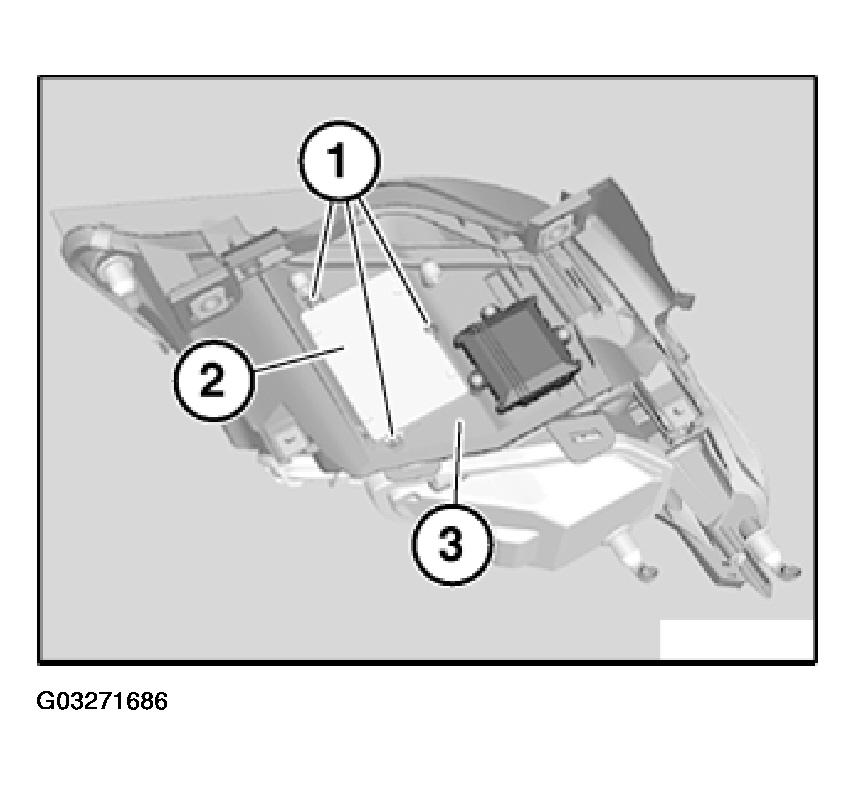

Fig 1: Locating Control Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing control unit for xenon headlight (1), make sure sealing sleeve (2) is correctly seated.

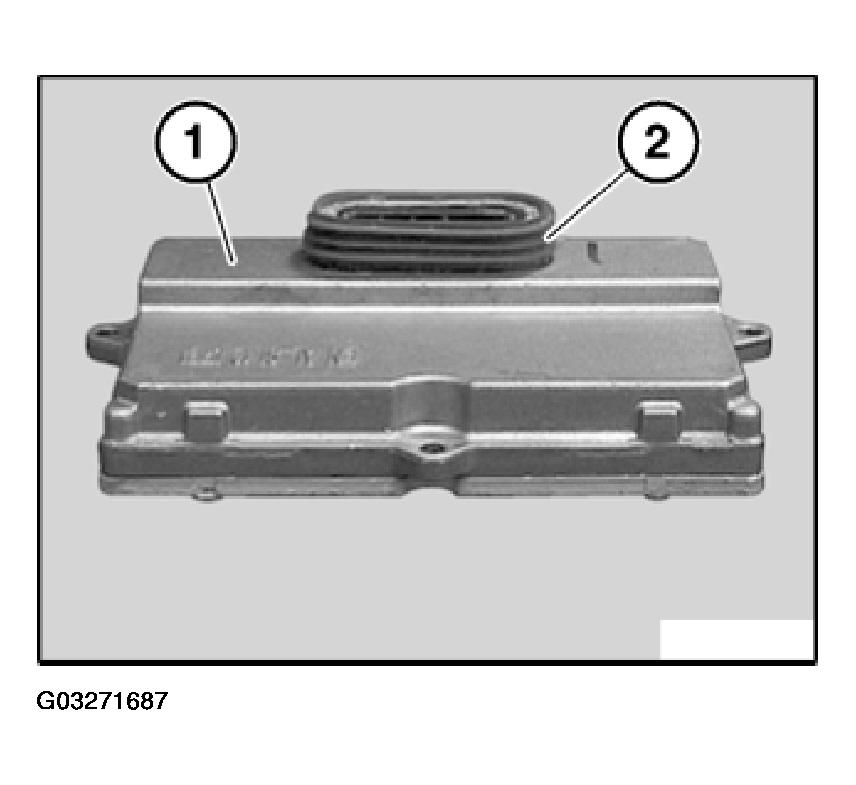

Fig 2: Identifying Sealing Sleeve For Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
