63 10 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with test preconditions for headlight adjustment. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

With Standard Front Bumper Trim:

Adjust fog lamp (1) at adjusting screw (2).

Fig 1: Locating Fog Lamp Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

With M Aerodynamic Kit:

Adjust Fog Lamp (1) At Adjusting Screw! (2).

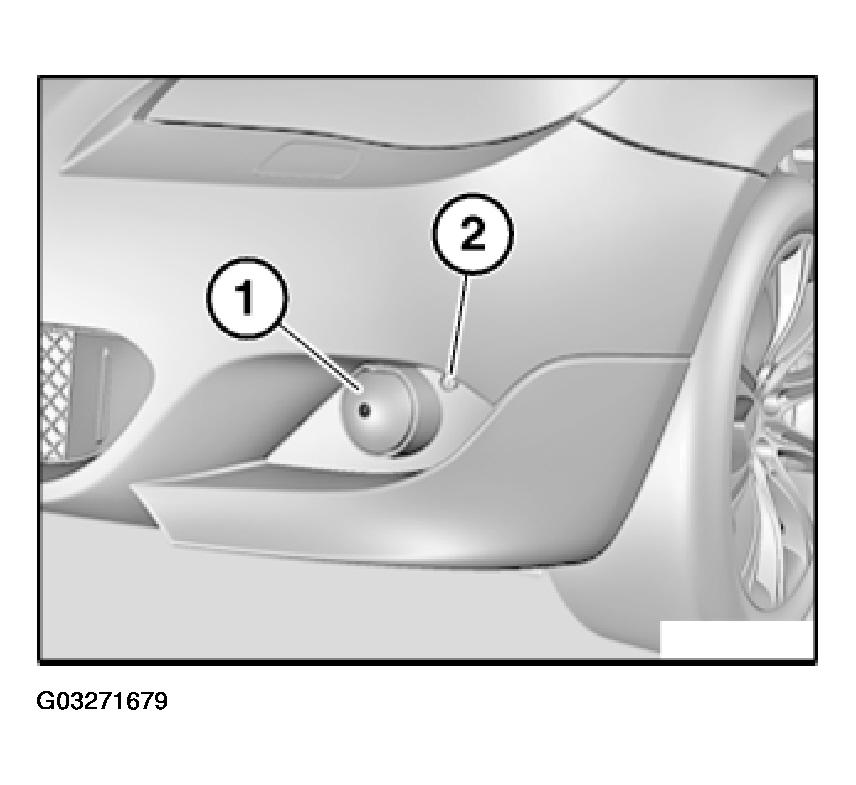

Fig 2: View Of Fog Lamp Adjusting Screw (With M Aerodynamic Kit)

Courtesy of BMW OF NORTH AMERICA, INC.
