61 31 135 Removing and installing/replacing headphones connection socket

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear insert (in storage compartment). Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING REAR INSERT (IN STORAGE COMPARTMENT) .

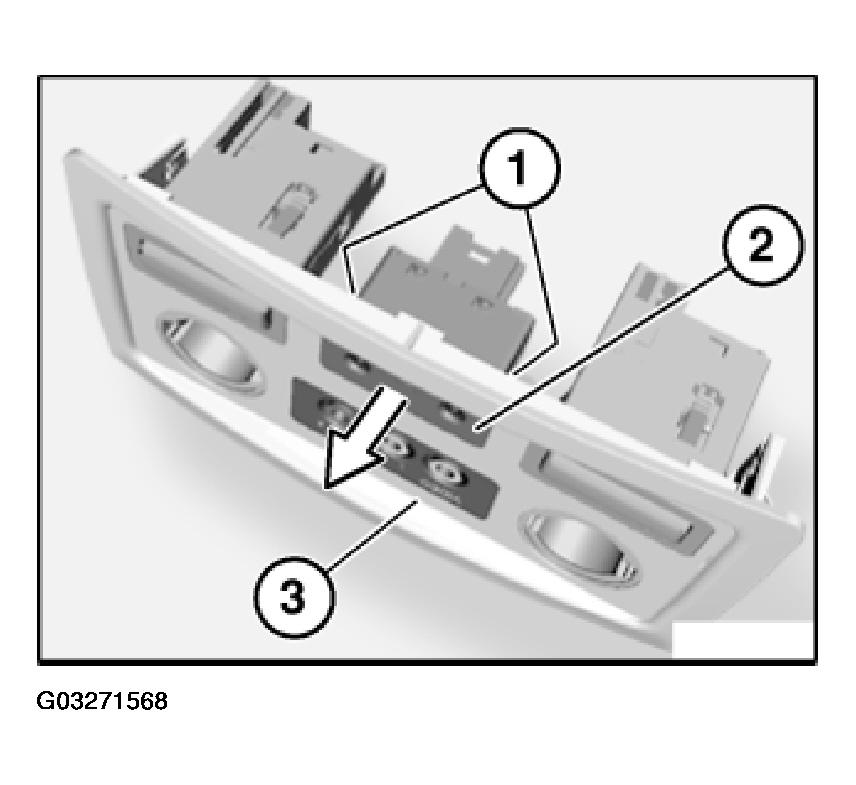

Press locks (1) together, feed headphones connection socket (2) out of rear insert (3) and remove.

Fig 1: View Of Headphone Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.
