61 36 520 Removing and installing / replacing relief relay (EDC)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove storage tray for car jack.
- Remove spare wheel.
- Remove control unit cover.

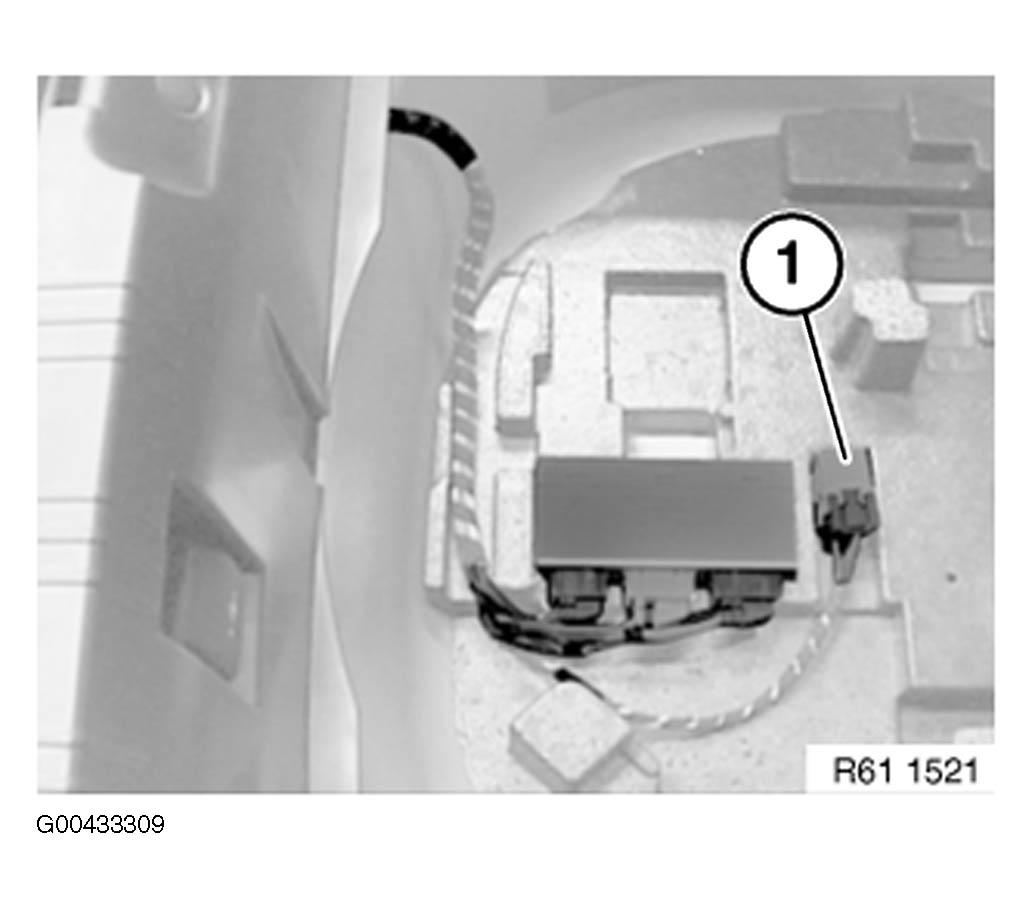

Detach relay (1).
