51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Remove luggage compartment floor trim (1).

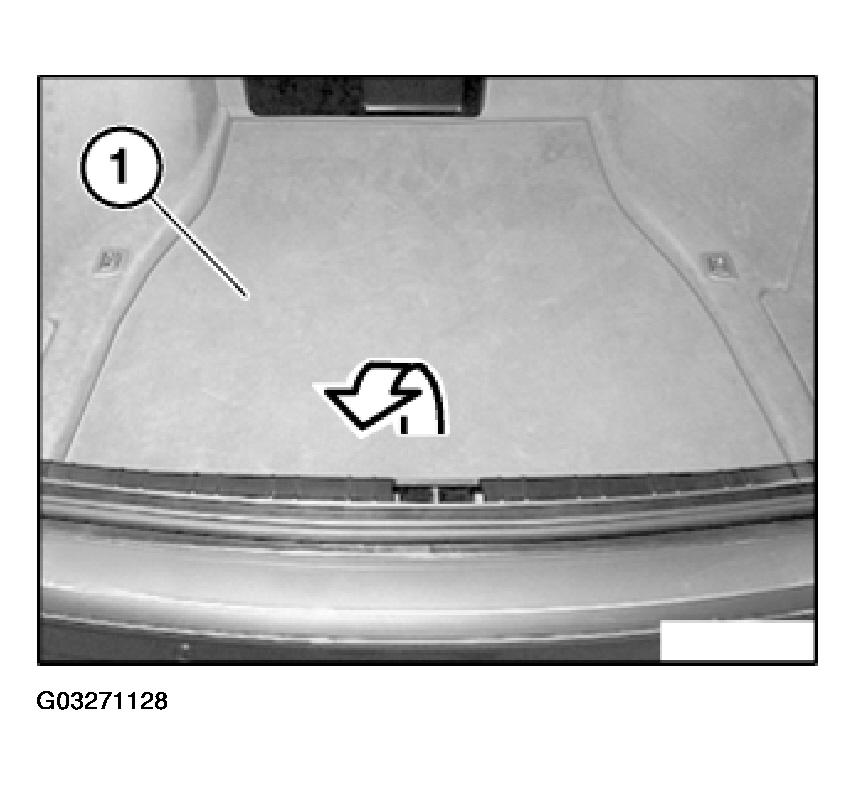

Fig 1: Removing Luggage Compartment Floor Trim
G03271128Courtesy of BMW OF NORTH AMERICA, INC.
