61 67 083 Removing and installing/replacing left or right high-pressure nozzle of headlight cleaning system
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS - 5-SERIES (E60) .
Special Tools Required:
- 13 3 010
Necessary Preliminary Tasks:
- Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

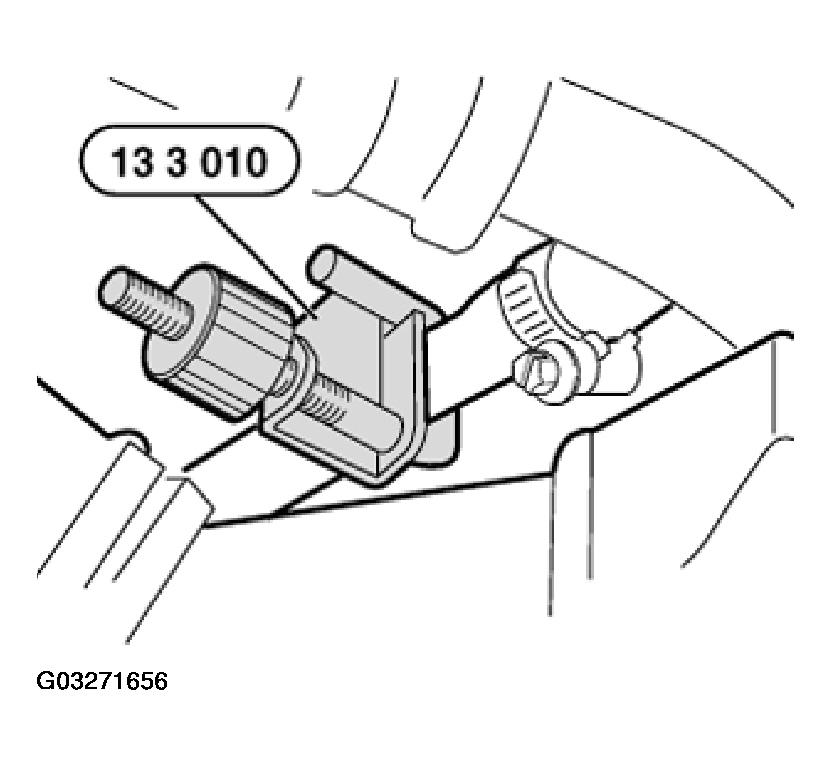

To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010.

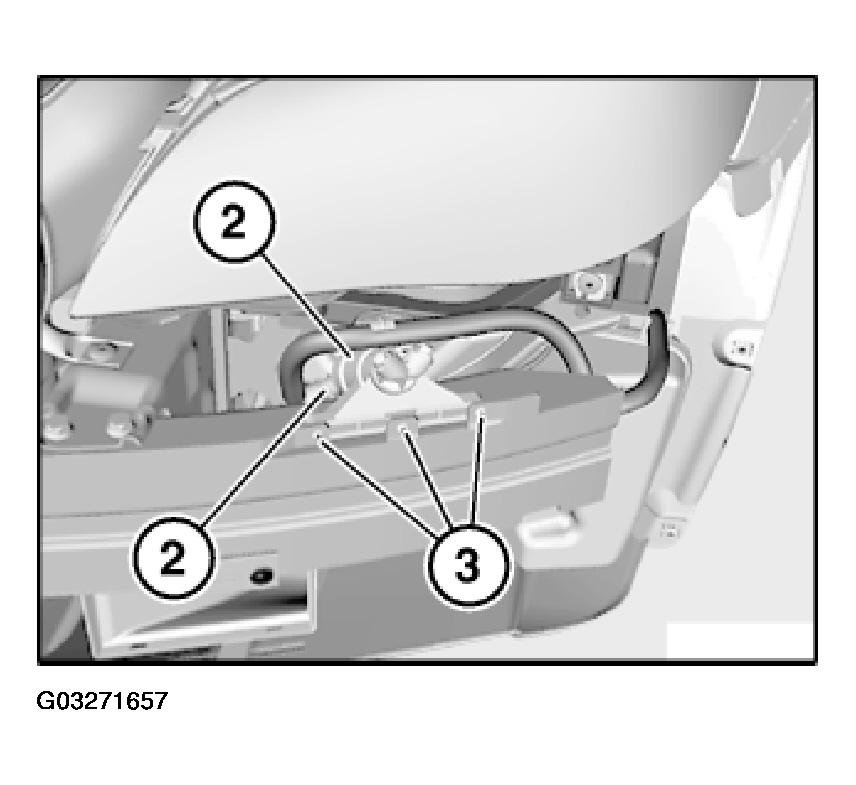

Unlock high-pressure line (1) and detach from high-pressure nozzle (2).
Release screws (3).
Remove high-pressure nozzle (2).
Installation:
New spray nozzles are already preset.
Carry out a function test before fitting bumper trim.
