61 12 065 Replacing wiring harness for front bumper

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Disconnect plug connections (1) on ultrasonic transducer.

Unclip wiring harness (2) from bumper trim.

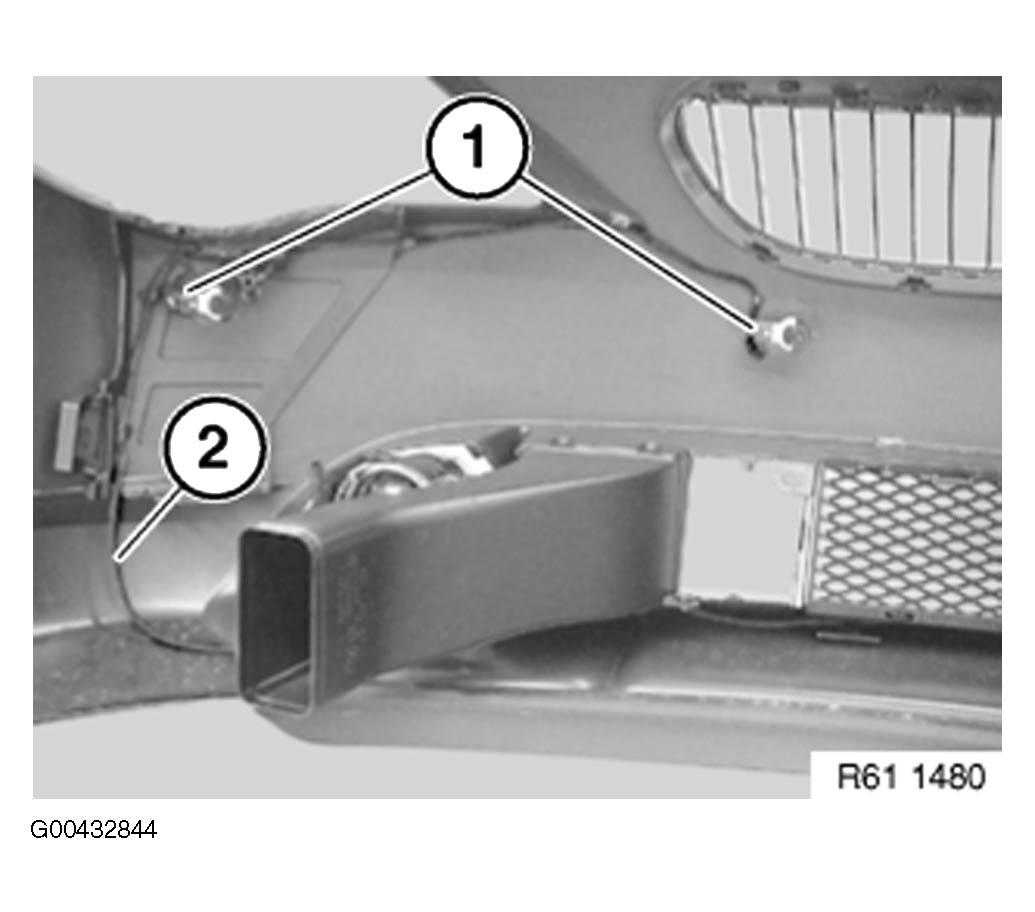

Fig 1: Identifying Ultrasonic Transducer Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) in direction of arrow from bumper trim.

Installation:

Make sure wiring harness (2) is correctly laid.

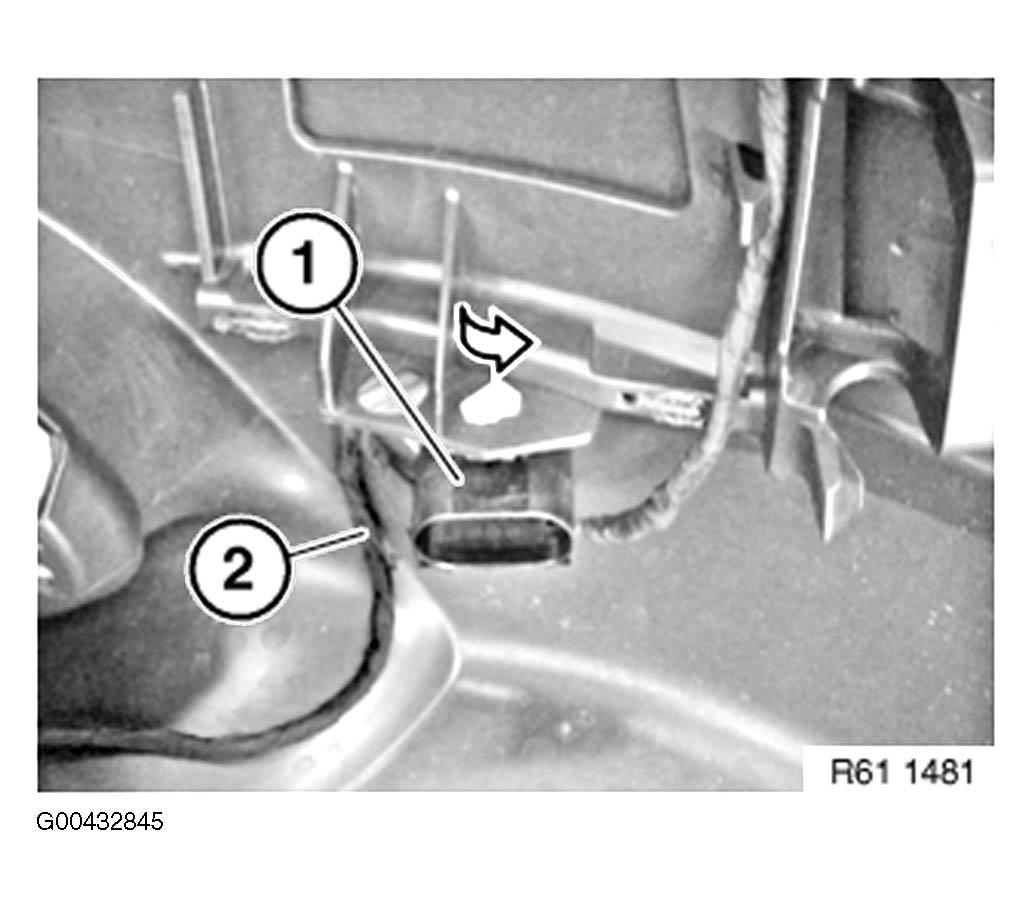

Fig 2: View Of Plug Connection In Wiring Harness
