54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof lid

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID .

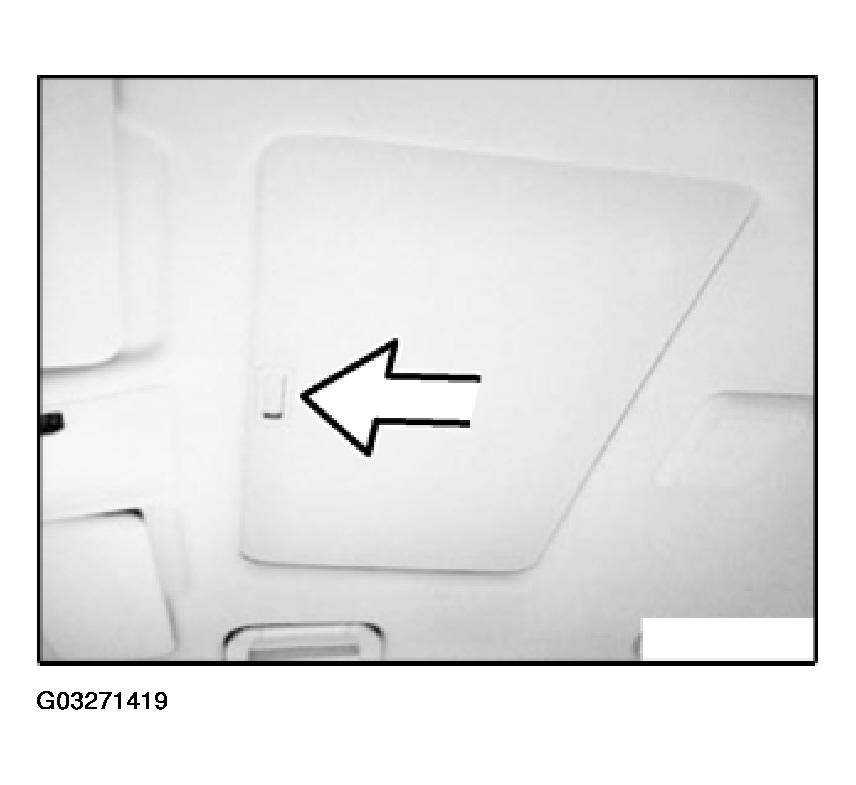

Slowly pull headliner (floating) fully towards front.

Fig 1: Aligning Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

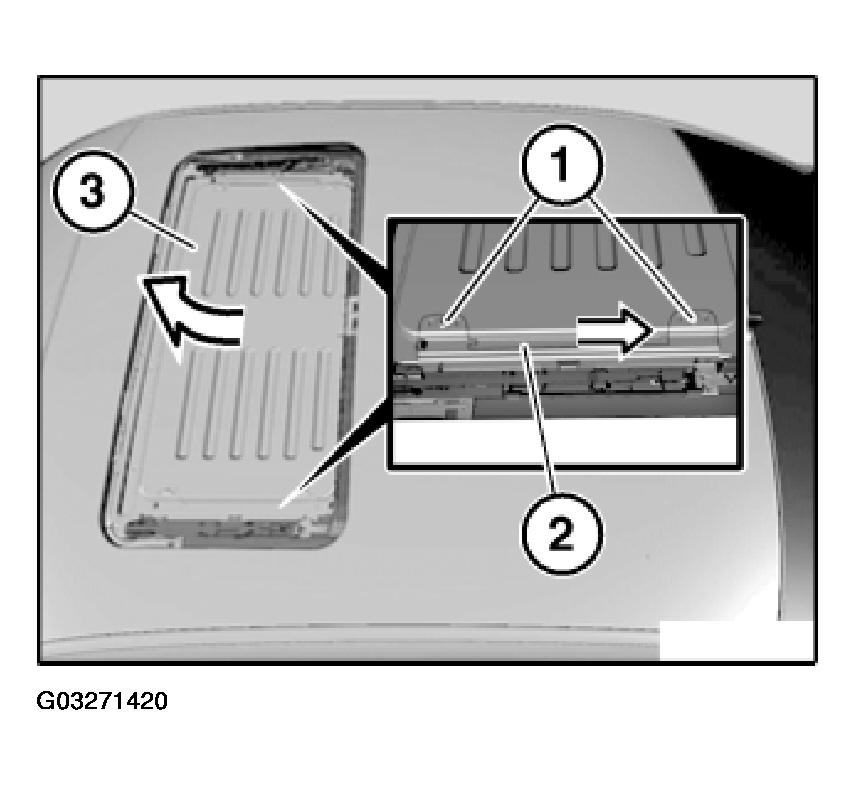

Release screws (1).

Slowly slide spring slider (2) towards rear.

NOTE: Make sure all parts are clean. If necessary, wear gloves.

Remove headliner (3) towards top.

Fig 2: View Of Slide Spring Slider

Courtesy of BMW OF NORTH AMERICA, INC.
