54 12 115 Removing and installing glass slide/tilt sunroof lid
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove gaiter on left and right. Refer to 54 12 015 REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF .

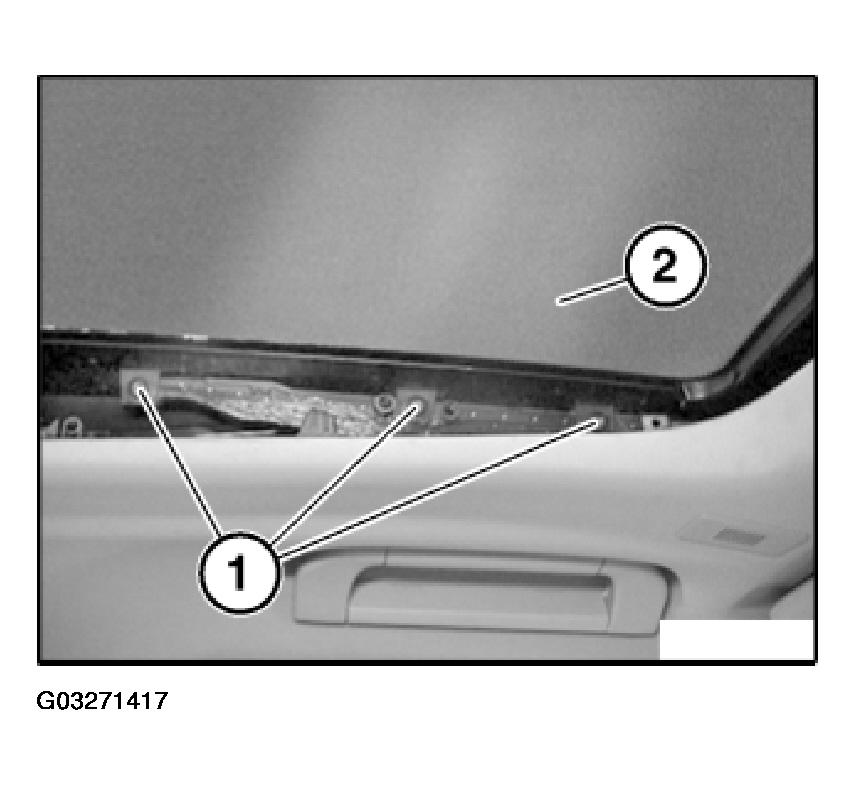

Release left and right screws (1).
Remove glass sunroof lid (2) towards top.
Installation:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
Adjust and initialize sunroof lid. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) and 54 12 003 ADJUSTING GLASS SLIDE/TILT SUNROOF LID .
