52 26 ... Replacing ISOFIX cover strip for rear seat backrest

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .

Unfasten screws.

Feed out cover strip towards front.

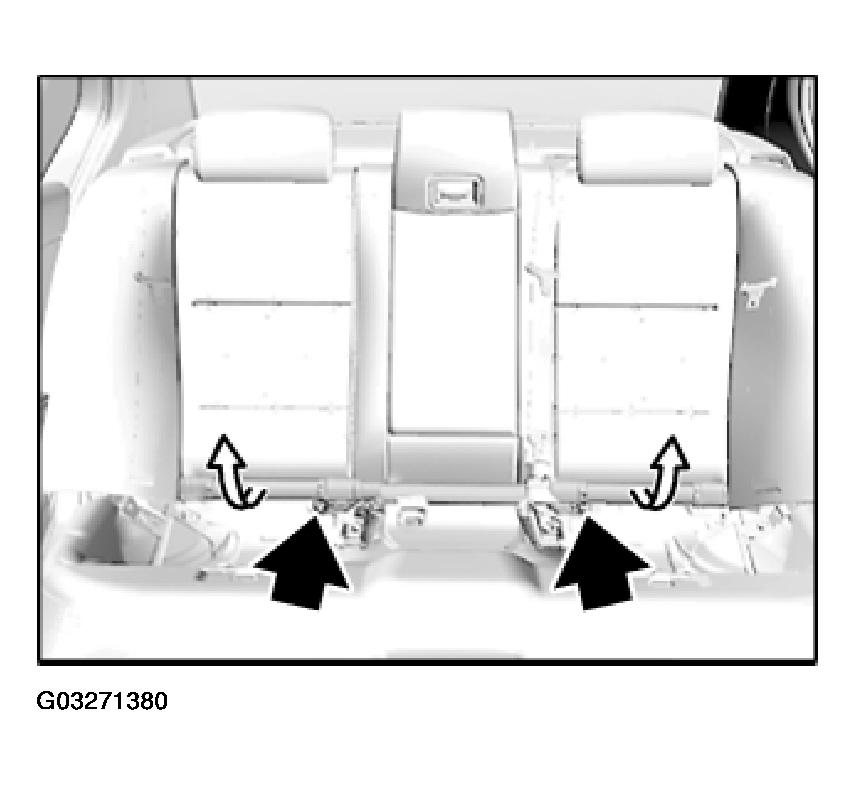

Fig 1: Removing Cover Strip Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Replace cover strip:

Remove trims.

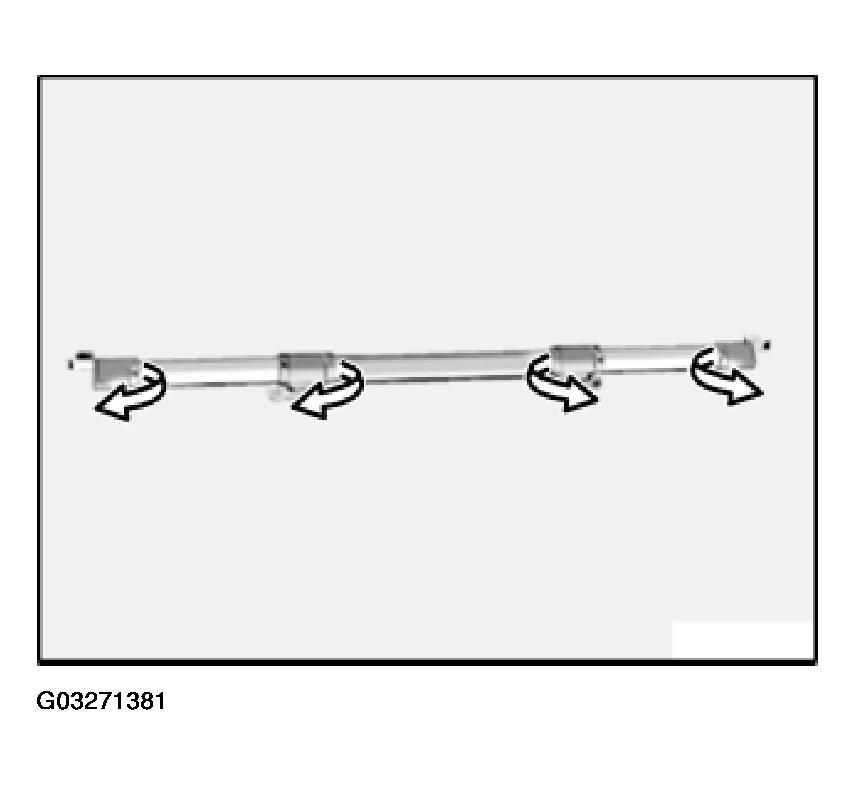

Fig 2: Removing Cover Strip Trims
Courtesy of BMW OF NORTH AMERICA, INC.
