52 24 005 Removing and installing or replacing rear seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left/right towards top.

Lift out seat.

Installation:

Feed belt buckles (1) through designated openings into correct location.

Guide lap belt behind seat edge upwards.

Make sure ISOFIX covers are correctly engaged.

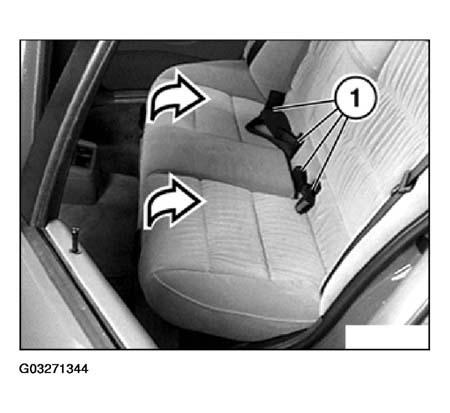

Fig 1: View Of Belt Buckles

Courtesy of BMW OF NORTH AMERICA, INC.

For Op. Ext. Seat Heating Only:

Unfasten plug connection.

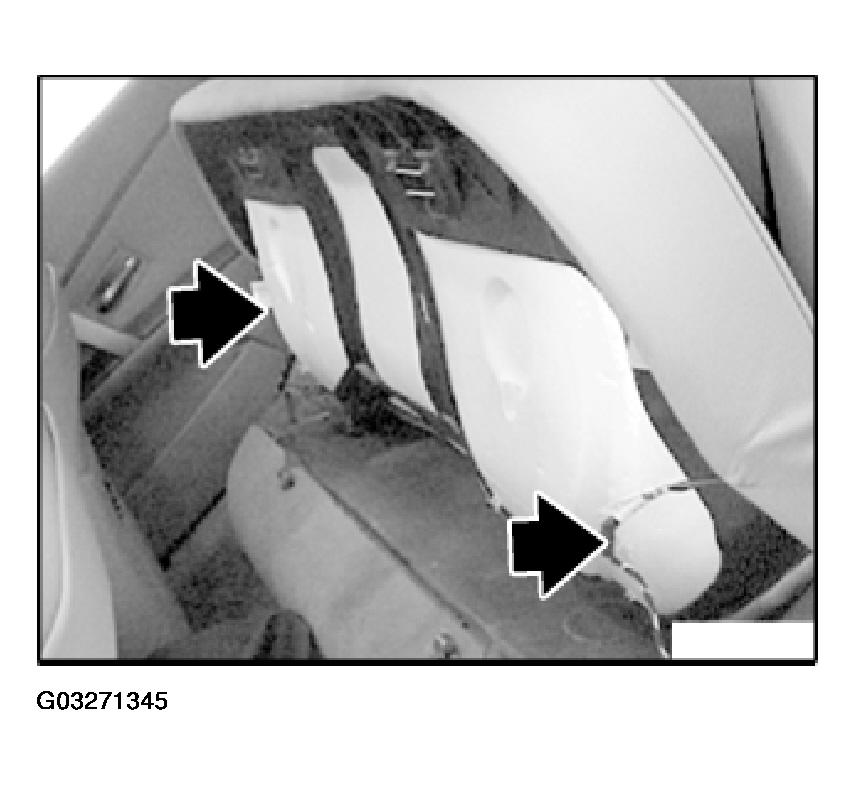

Fig 2: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
