52 26 ... Removing and installing/replacing rear left or right head restraint mount (through-loading)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove padding for rear backrest. Refer to 52 26 080 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR LEFT REAR SEAT (THROUGHLOADING SYSTEM) and 52 26 085 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR RIGHT REAR SEAT (THROUGHLOADING SYSTEM) .

Left head restraint mount:

Release screws, remove head restraint mount.

Tightening torque, refer to 52 24 2AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .

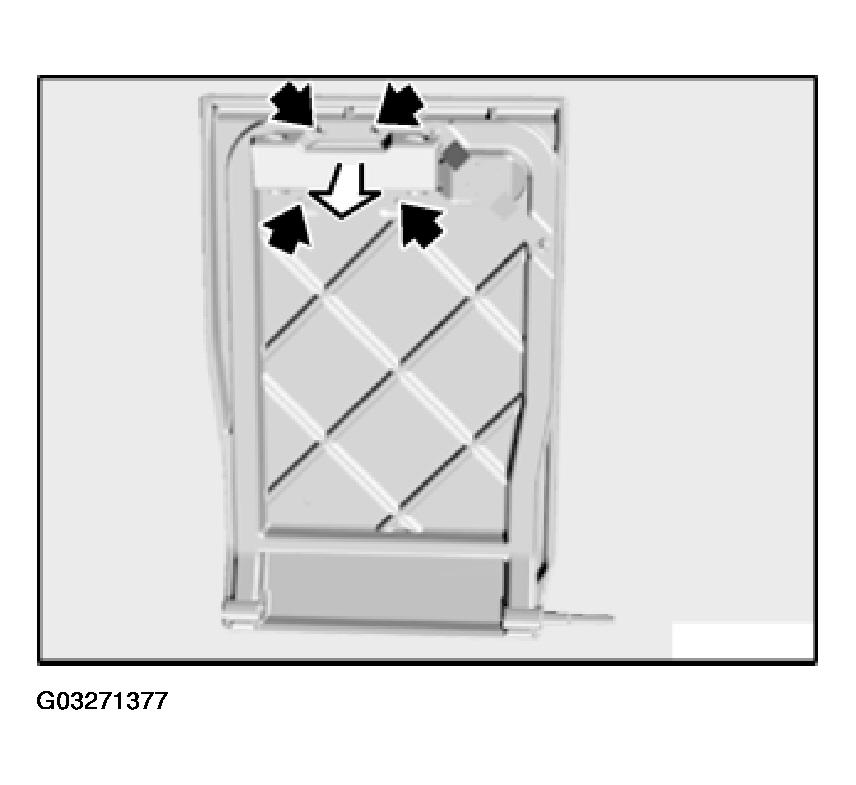

Fig 1: Locating Head Restraint Mount Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Right head restraint mount:

Release screws, remove head restraint mount.

Tightening torque, refer to 52 24 2AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .

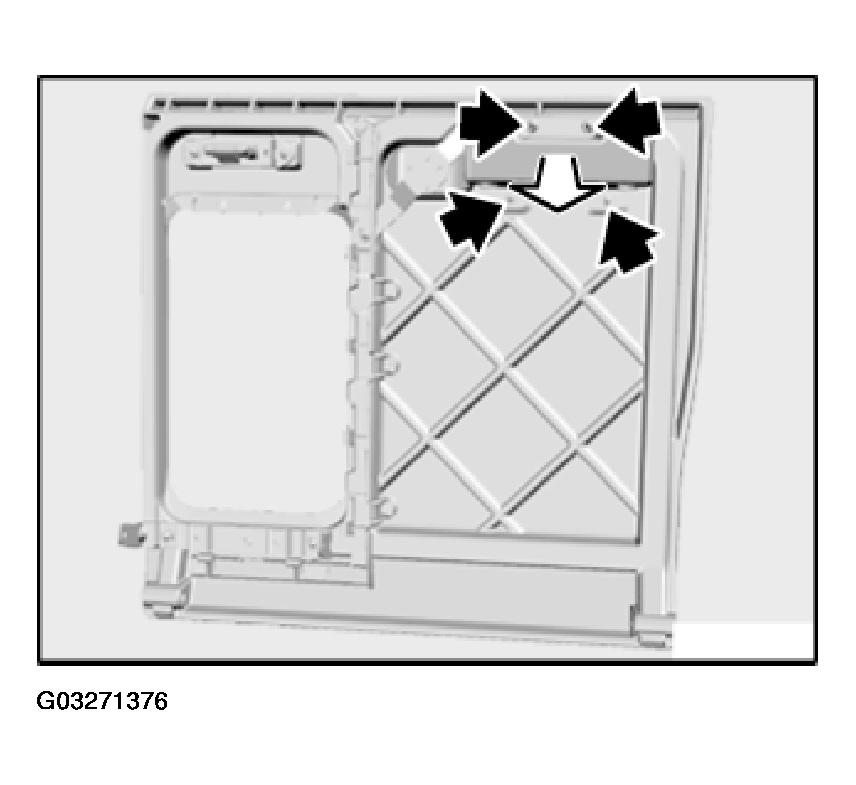

Fig 2: Identifying Head Restraint Mount Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
