52 24 380 Removing and installing/replacing left or right rear head restraint mount
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove padding for rear backrest. Refer to 52 24 408 REPLACING BACKREST COVER (BASIC) FOR LEFT OR RIGHT REAR SEAT .

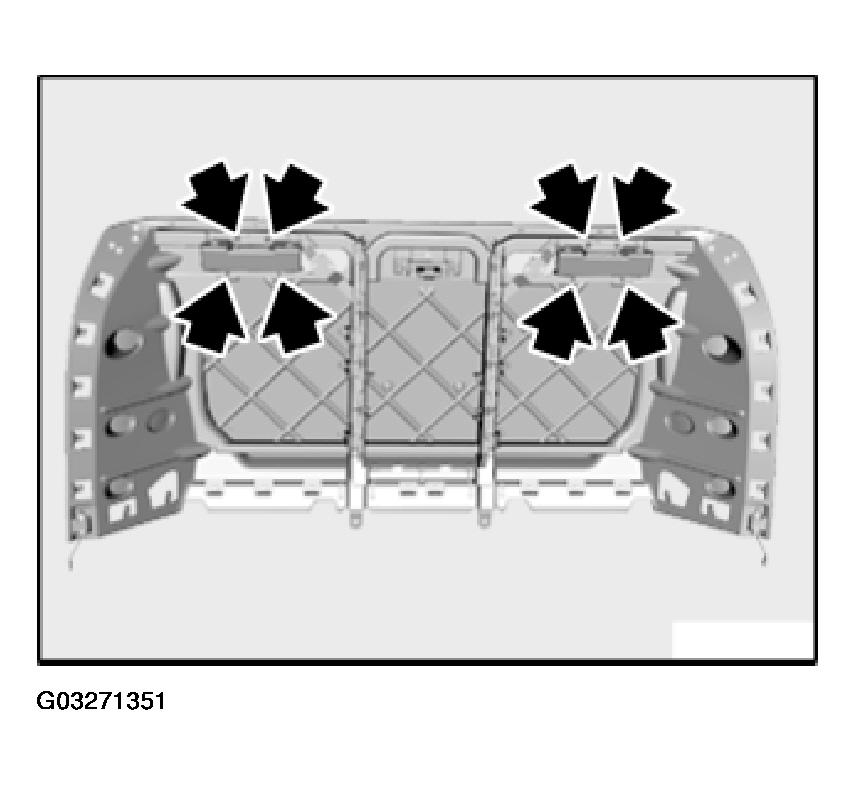

Release relevant screws, remove left or right head restraint mount.
Tightening torque, refer to 52 24 2AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .
