52 24 045 Removing and installing/replacing backrest frame
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove backrest cover with padding. Refer to 52 24 408 REPLACING BACKREST COVER (BASIC) FOR LEFT OR RIGHT REAR SEAT .
Replacement only:
If necessary, release all screws and remove parts:

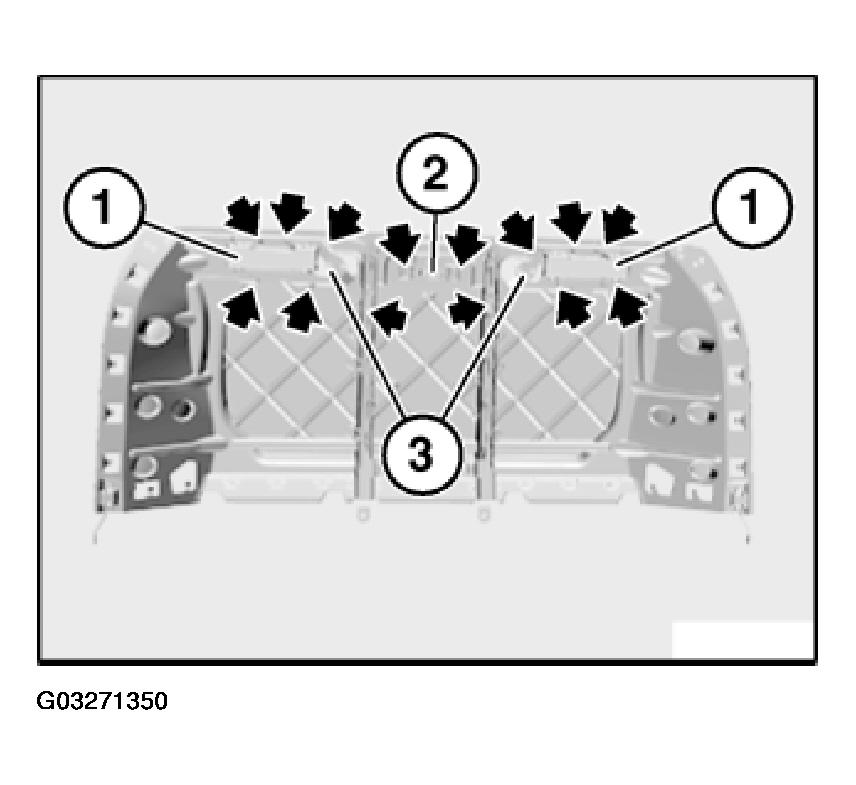

COMPONENTS OF BACKREST FRAME
| No. | Description | Tightening torque |
|---|---|---|
| 1 | Head restraint mount | 52 24 2AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 . |
| 2 | Armrest lock | 52 24 3AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 . |
| 3 | Backrest lock | 52 24 4AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 . |
