52 13 040 Removing and installing/replacing outer cover on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Pull lever forward to remove:

If necessary, lever out lower locking point (1) from rear with a screwdriver.

Unscrew bolt (2).

If necessary, move seat fully forwards and upwards.

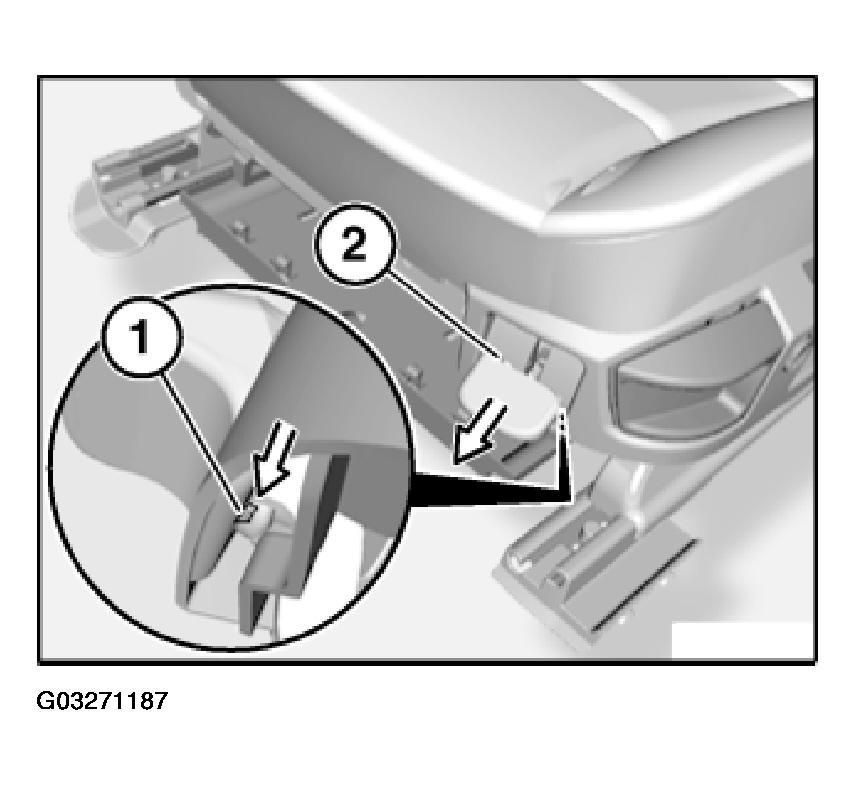

Fig 1: Identifying Lower Locking Points

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim:

Unfasten plug connection.

Replacement Only:

Remove switch. Refer to 61 31 204 REPLACING SEAT ADJUSTMENT SWITCH COMBINATION (SEMI-ELECTRIC FRONT SEAT) and 61 31 208 REMOVING AND INSTALLING/REPLACING SWITCH FOR FRONT LUMBAR SUPPORT .

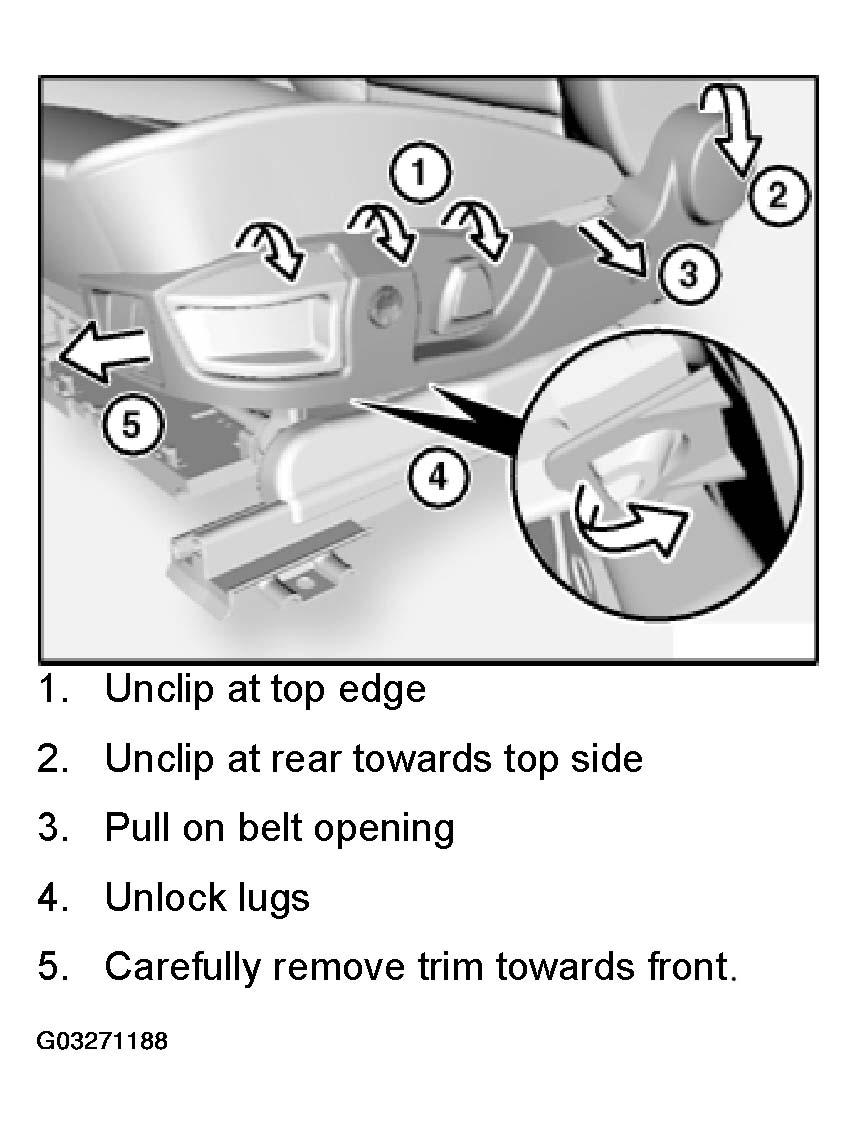

Fig 2: Removing Seat Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips and tabs must not be damaged.

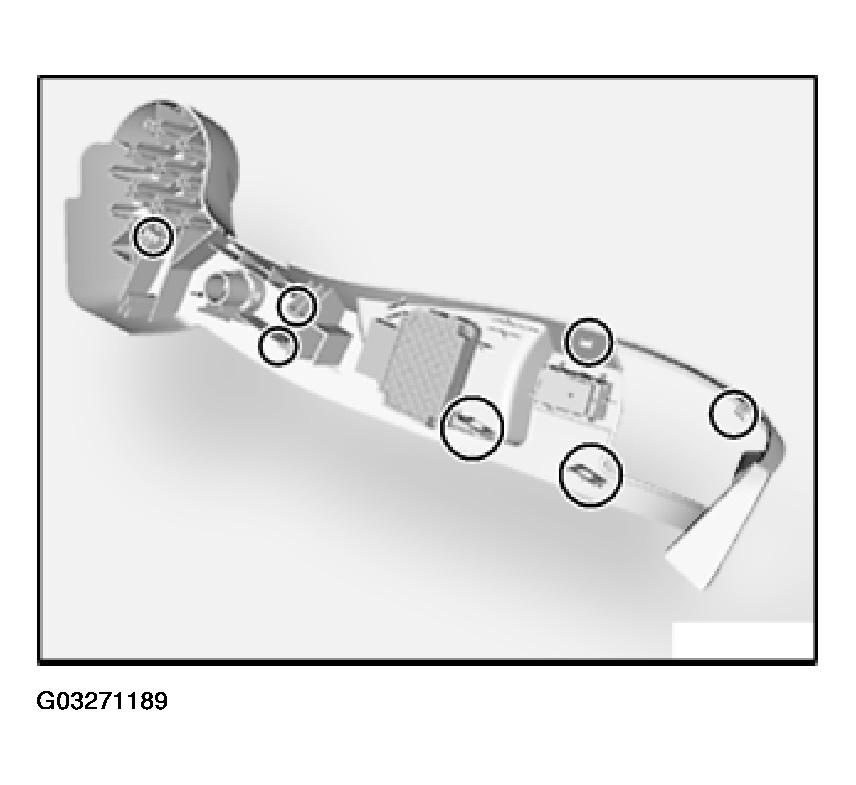

Fig 3: Identifying Retaining Clips And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
