61 31 204 Replacing seat adjustment switch combination (semi-electric front seat)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Remove outer cover on front seat. Refer to 52 17 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (COMFORT) .

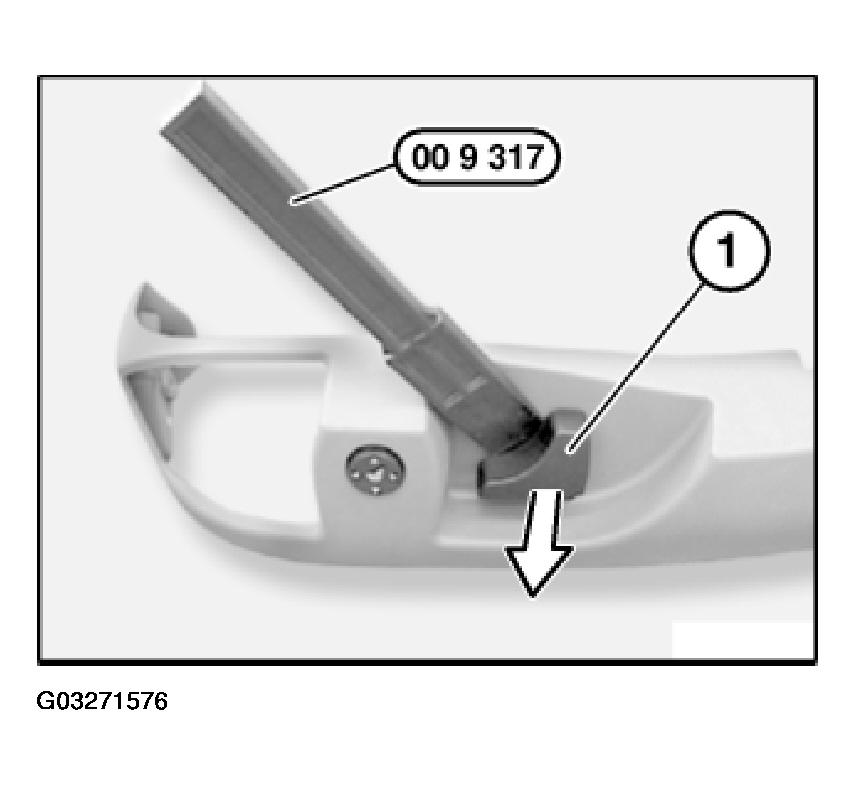

Lever out seat adjustment control button (1) with special tool 00 9 317 in direction of arrow.

Fig 1: Removing Seat Adjustment Control Button Using Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

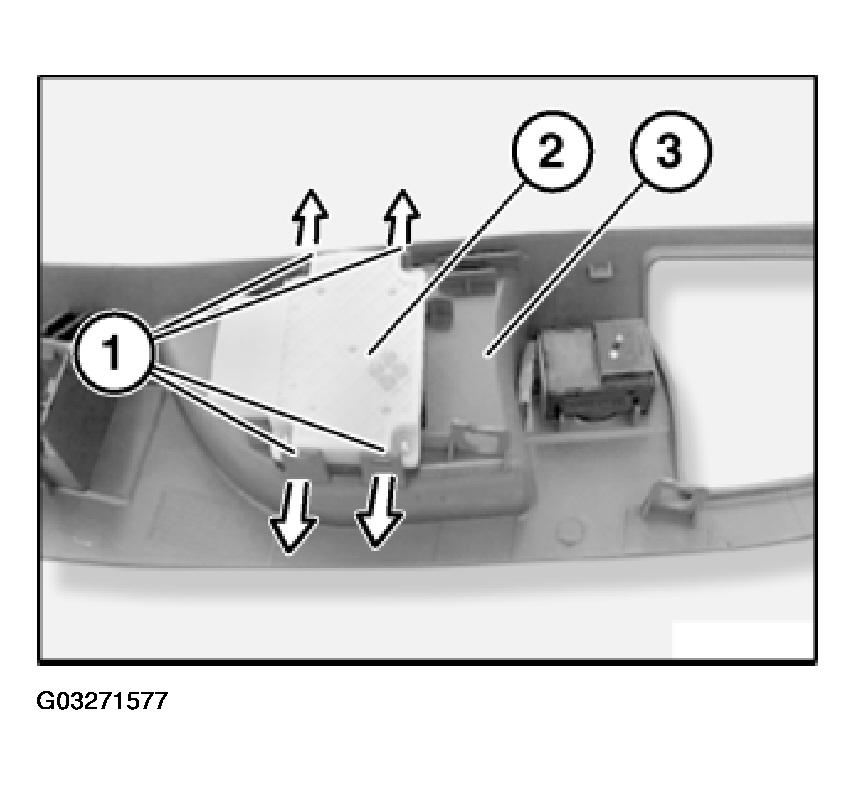

Unlock catches (1) in direction of arrow and remove seat adjustment switch combination (2) from cover (3).

Fig 2: Removing Seat Adjustment Switch Combination From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
