52 13 015 Removing and installing/replacing actuating unit on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outer cover on front seat. Refer to 52 13 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) .

Pull lever and release screw (1).

Release screws (1) and remove actuating unit.

Fig 1: Locating Actuating Unit Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed Bowden cable nipple (2) out of fixture (3).

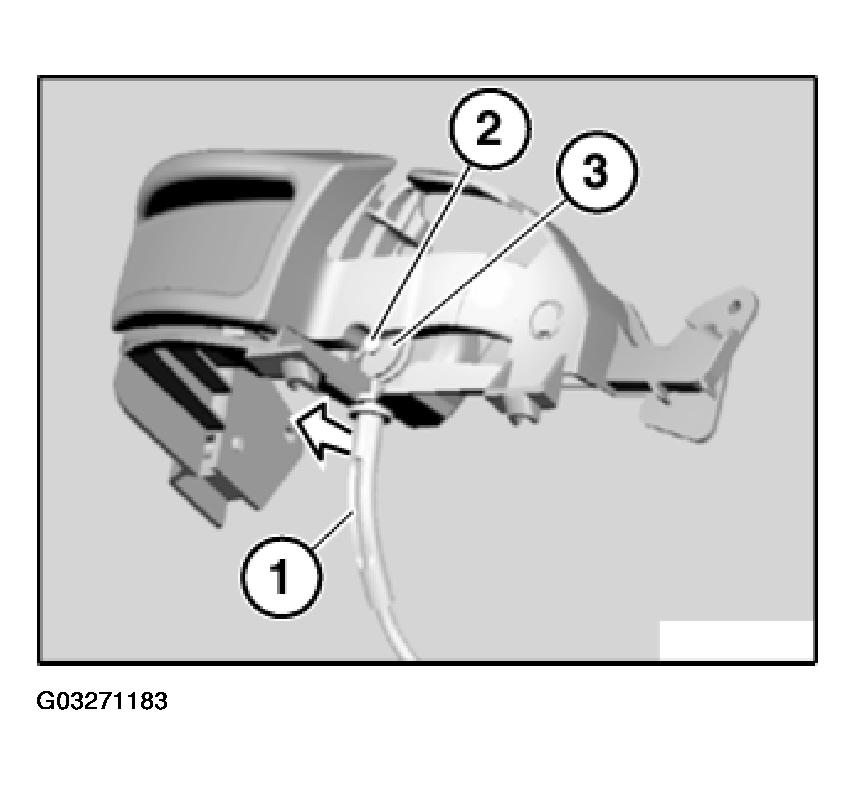

Fig 2: View Of Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
