52 14 ... Additional work (normal/electric) with defective drive/gear for longitudinal adjustment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Seat rails must be replaced by detaching worm gear.

Move seat height and seat tilt adjustment to top position.

To obtain improved access if necessary:

Release screws (1).
Tip seat towards rear.

Installation:

Tightening torque, refer to 52 10 6AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .

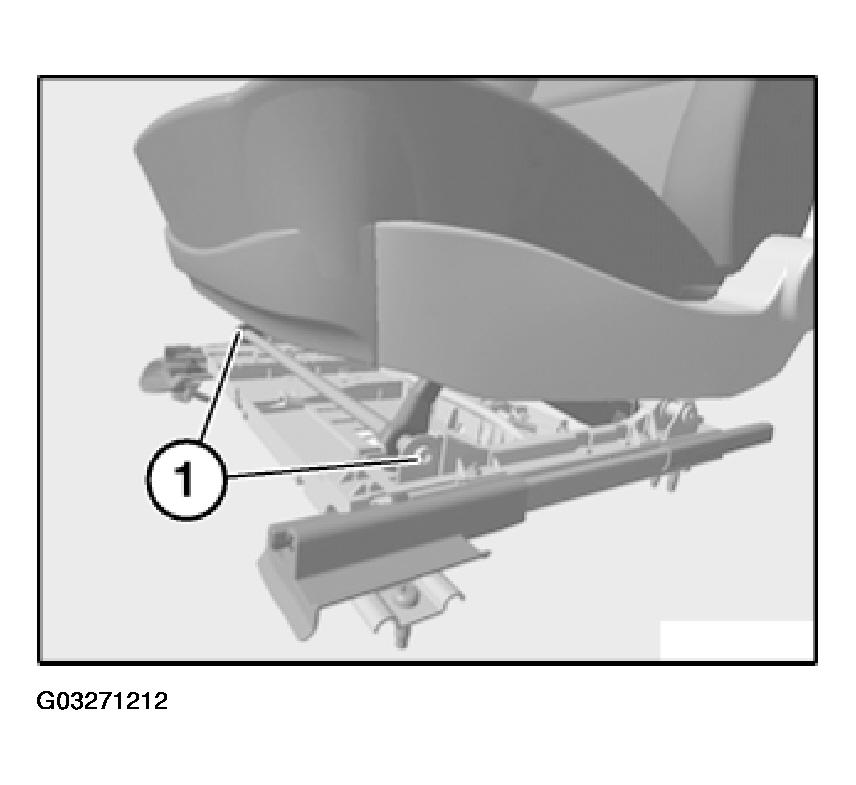

Fig 1: Identifying Seat Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift drive (1) and flex shaft (3) out of guide (2) in direction of arrow.

Detach flex shaft (3) (plug connection).

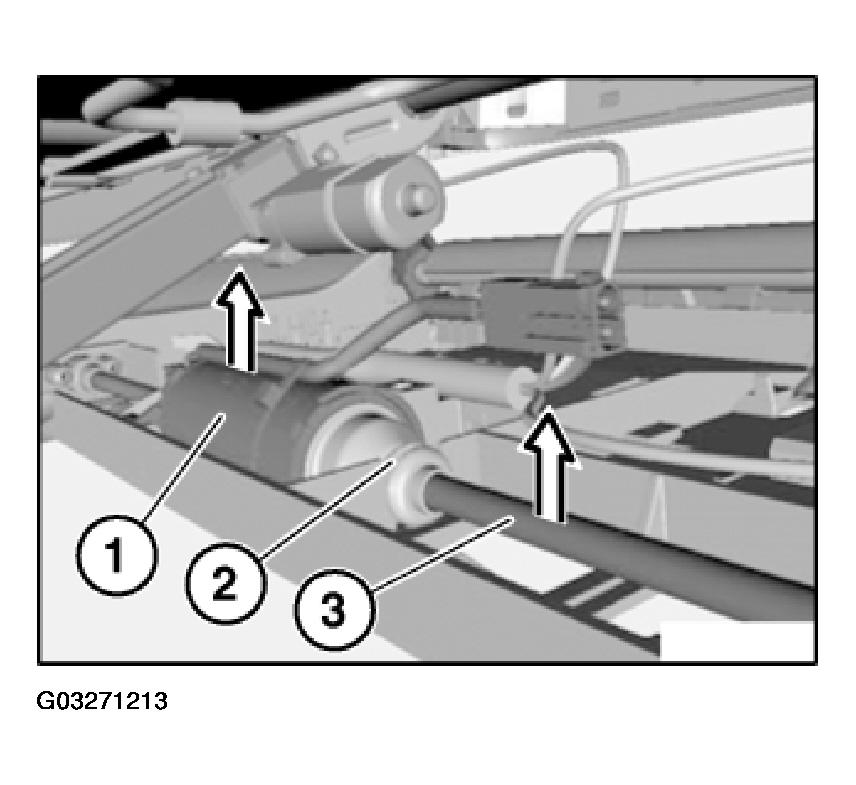

Fig 2: View Of Drive And Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove drive (4).

Detach flex shaft (3) with holder (2).

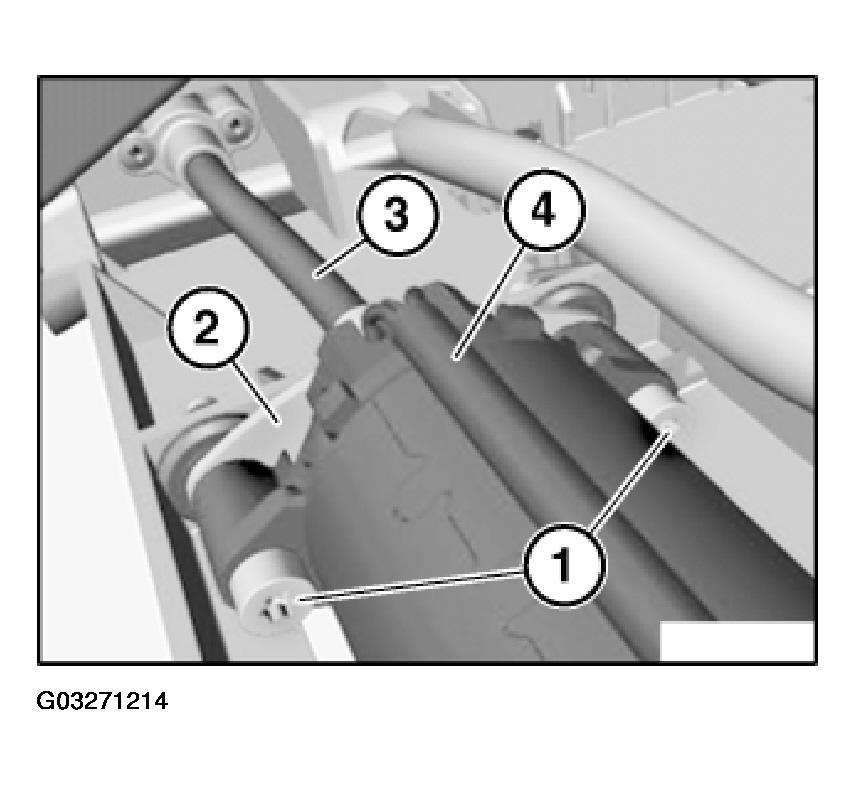

Fig 3: Locating Drive Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Activate the operating switch for the seat position adjustment:

No function:
- Disconnect plug connection on drive.
- Connect new drive and check function.
- Gear is O.K. if drive runs.
  Assemble seat.
Drive running:
- Gear for longitudinal seat adjustment defective.

Removing Gear For Longitudinal Seat Adjustment:

Release screws (1).

Remove worm gear (2) on left and right with cover.

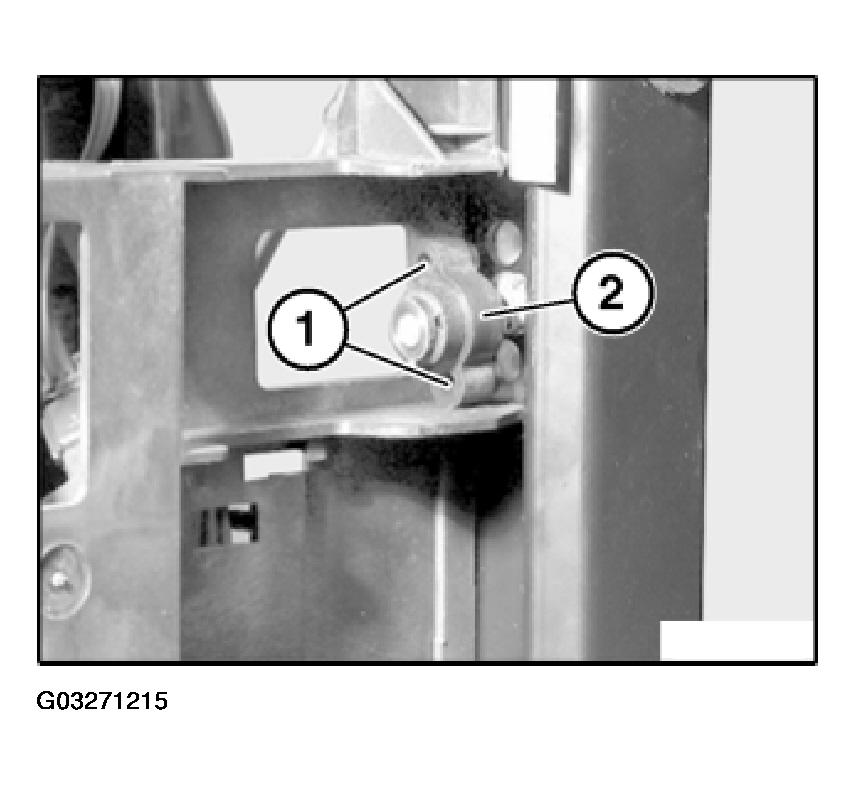

Fig 4: Removing Gear For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on upper rail on left and right.

NOTE: The seat can now be adjusted together with the upper rail.

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Replace both seat rails. Refer to 52 14 010 REMOVING AND INSTALLING/REPLACING BOTH SEAT RAILS ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

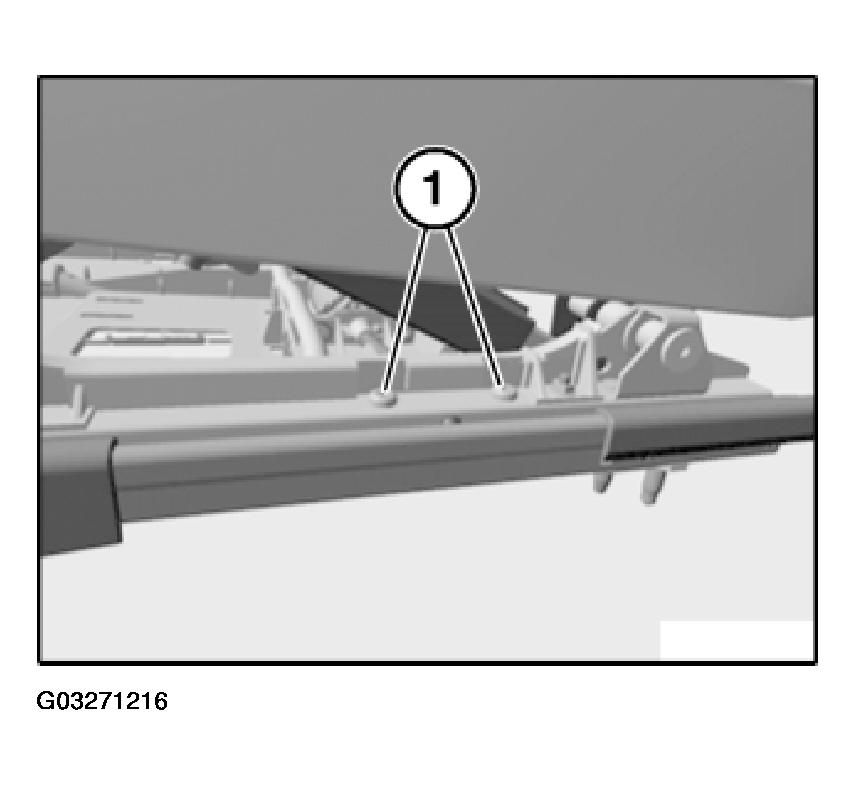

Fig 5: Identifying Screws On Upper Rail

Courtesy of BMW OF NORTH AMERICA, INC.
