51 34 211 Replacing rubber guide for rear left or right door window
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove cover on inside of door window frame. Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .
- Remove outer window cavity cover strip. Refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

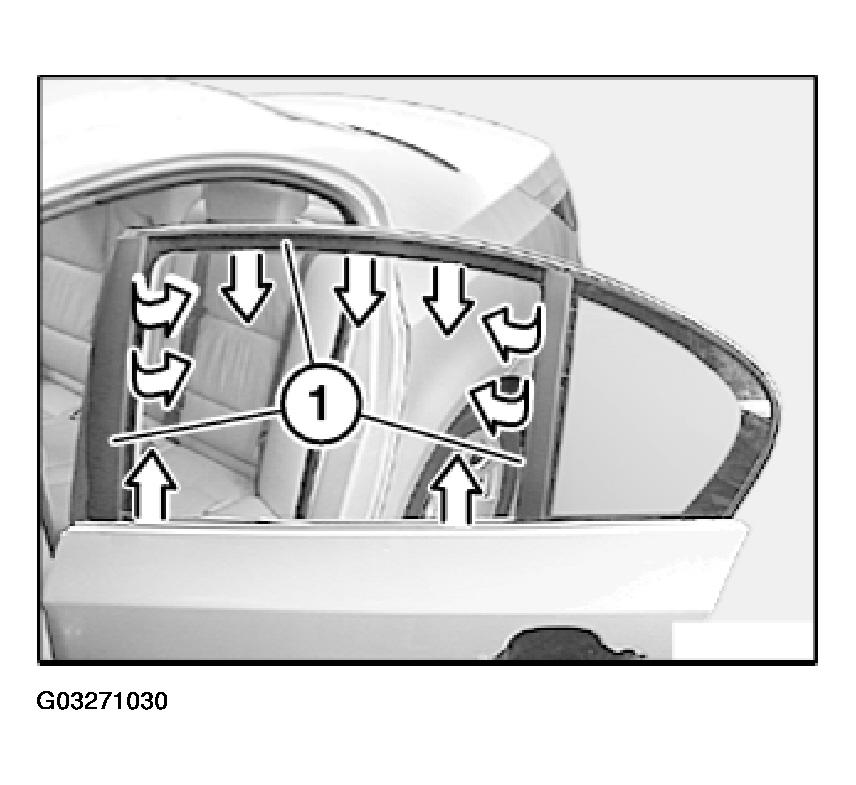

Lever out rubber guide (1) and remove upwards out of side window guides.
