51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame

Necessary Preliminary Tasks:

• Open door window.
• Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Version with roller sun blind on rear door:

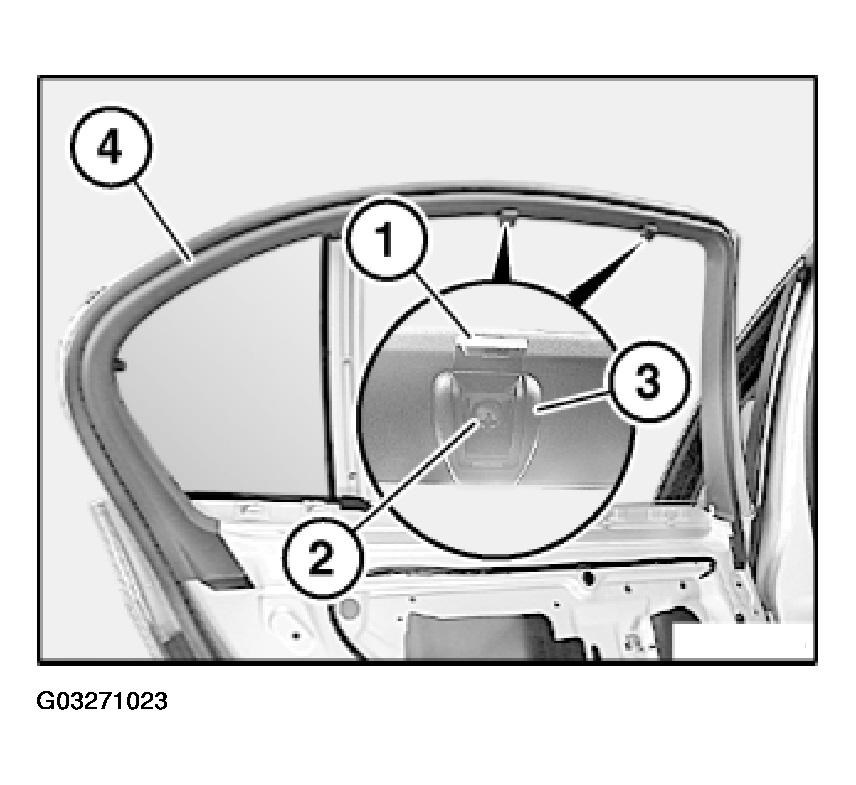

If necessary, unclip cover (1) and release screw (2) underneath. Remove hook (3) on cover (4).

Fig 1: Removing Hook On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

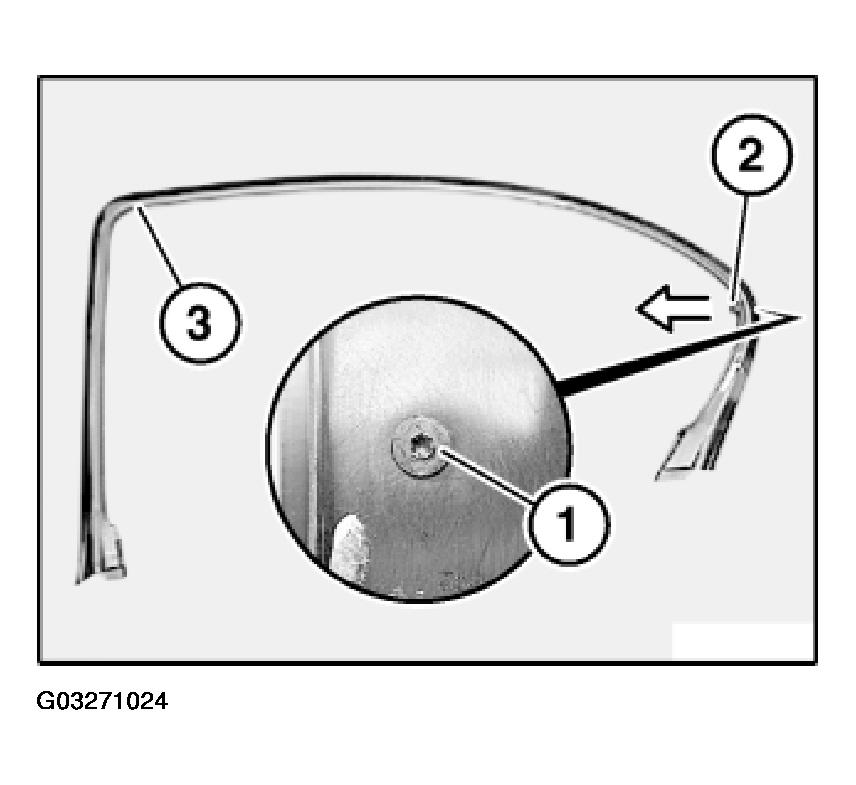

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).

Fig 2: Removing Hook Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version without roller sun blind:

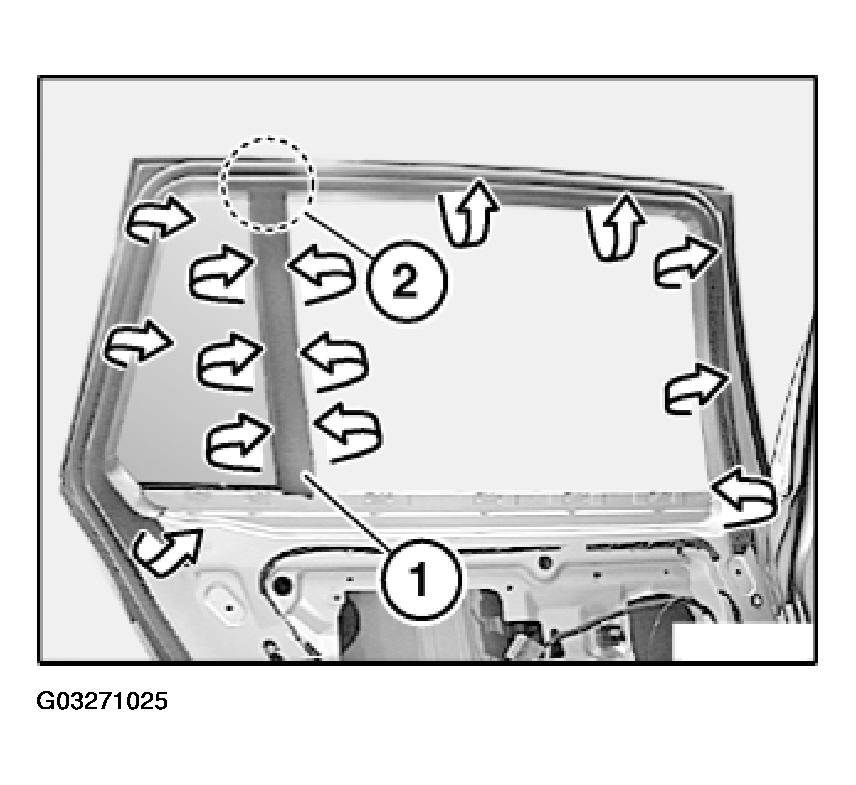

If necessary, lever out cover (1) in direction of arrow.

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

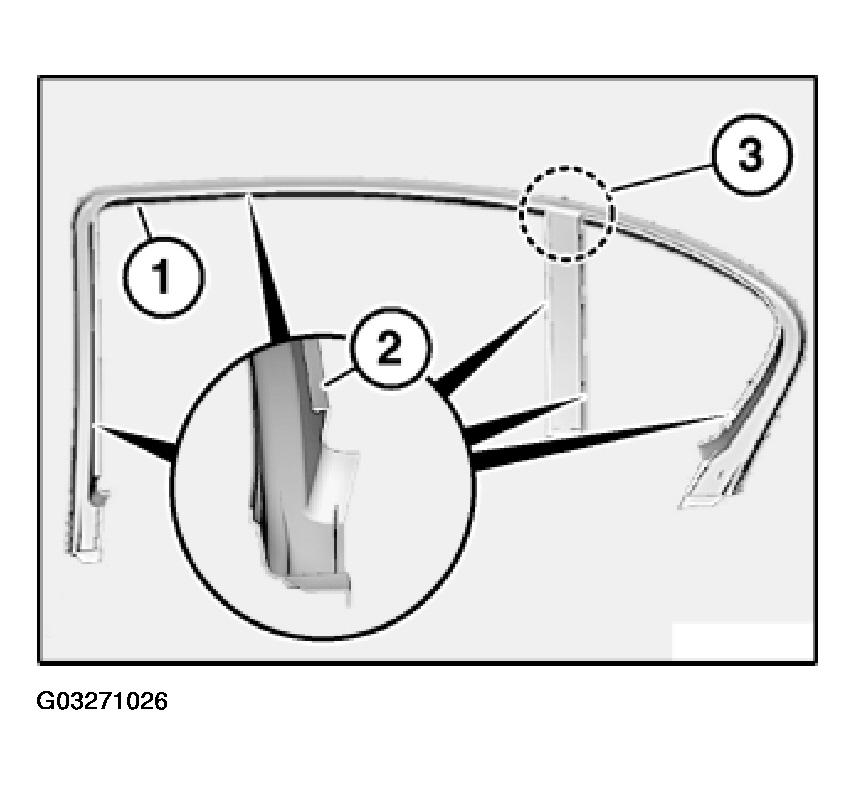

Following parts of cover (1) must not be damaged:

1. All-round guide.
2. Connection point.
   Fig 4: Identifying Connection Point And All-Round Guide

   Courtesy of BMW OF NORTH AMERICA, INC.
