51 34 ... Removing and installing/replacing trim for window guide of left or right rear door

Necessary Preliminary Tasks:

• Remove cover on inside door window frame (rear door). Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .

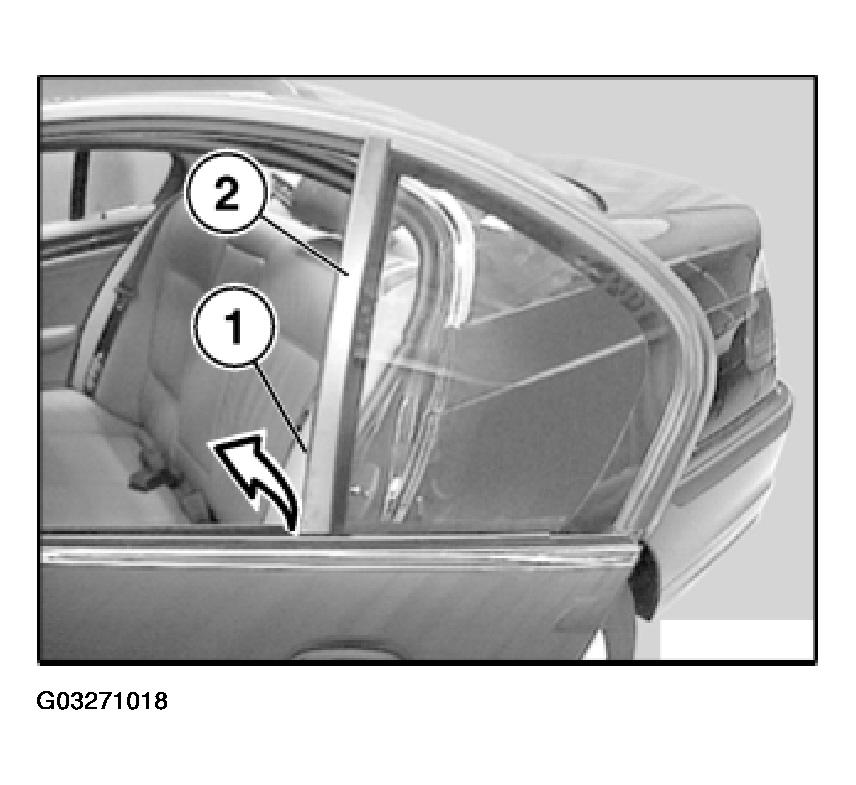

Pull rubber guide (1) out of trim (2).

Fig 1: Removing Rubber Guide From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

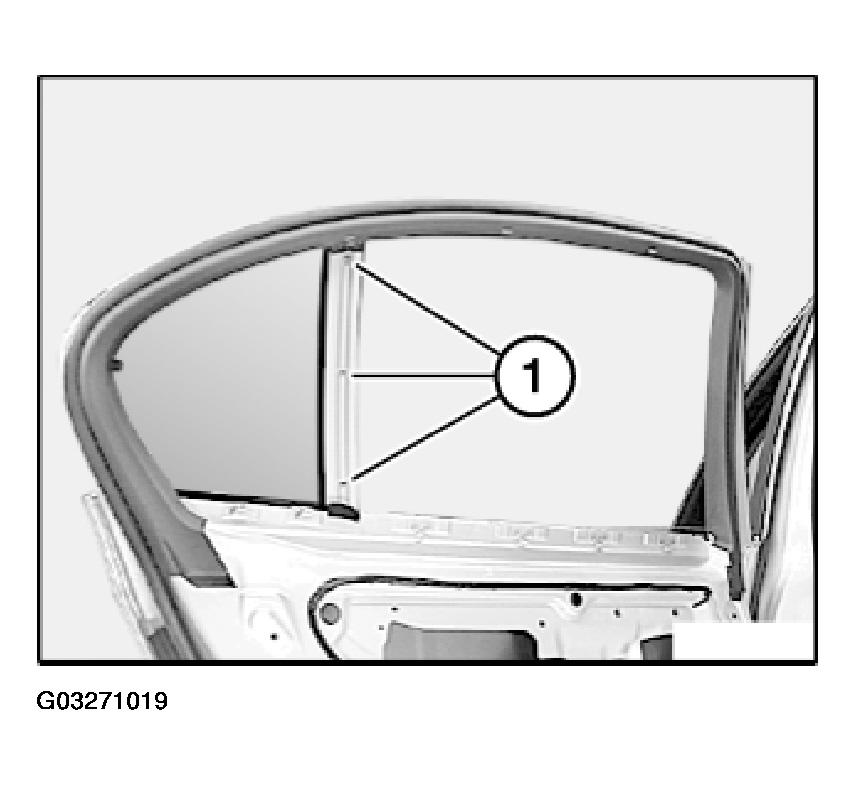

Grip trim firmly and release screws (1).

Fig 2: Locating Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

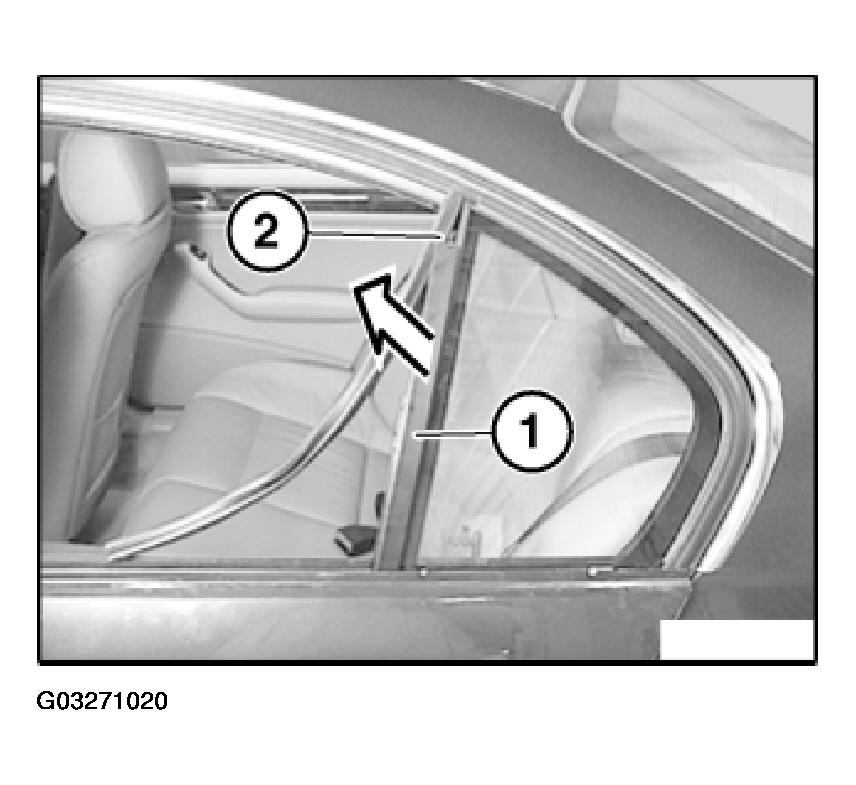

Push trim (1) downwards from rubber guide (2) and remove towards top.

Fig 3: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

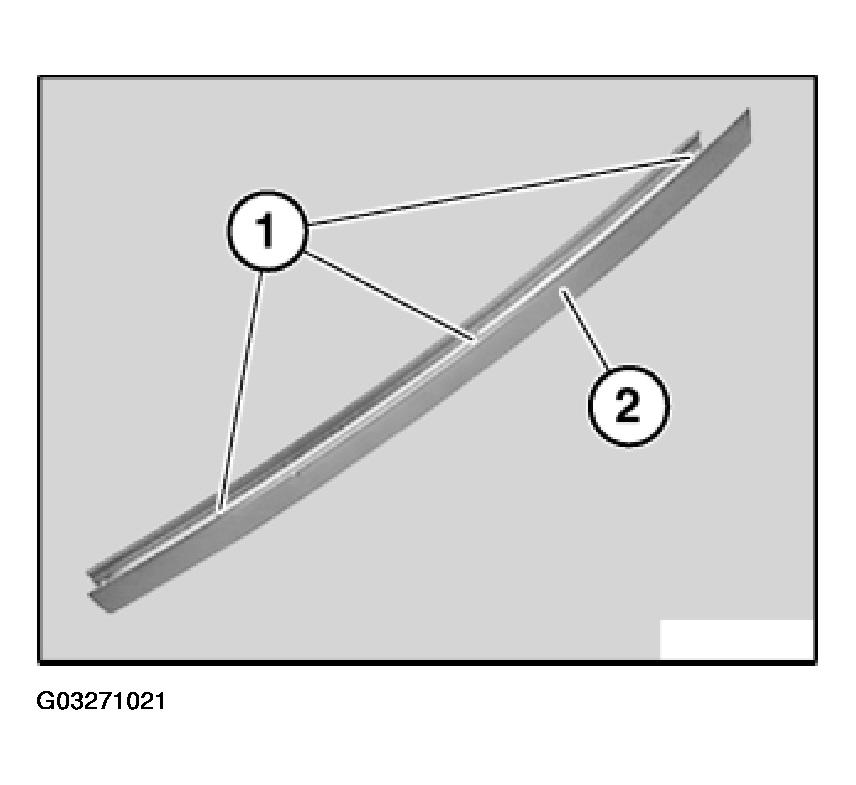

Threads (1) of trim (2) must not be damaged.

Fig 4: View Of Threads On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

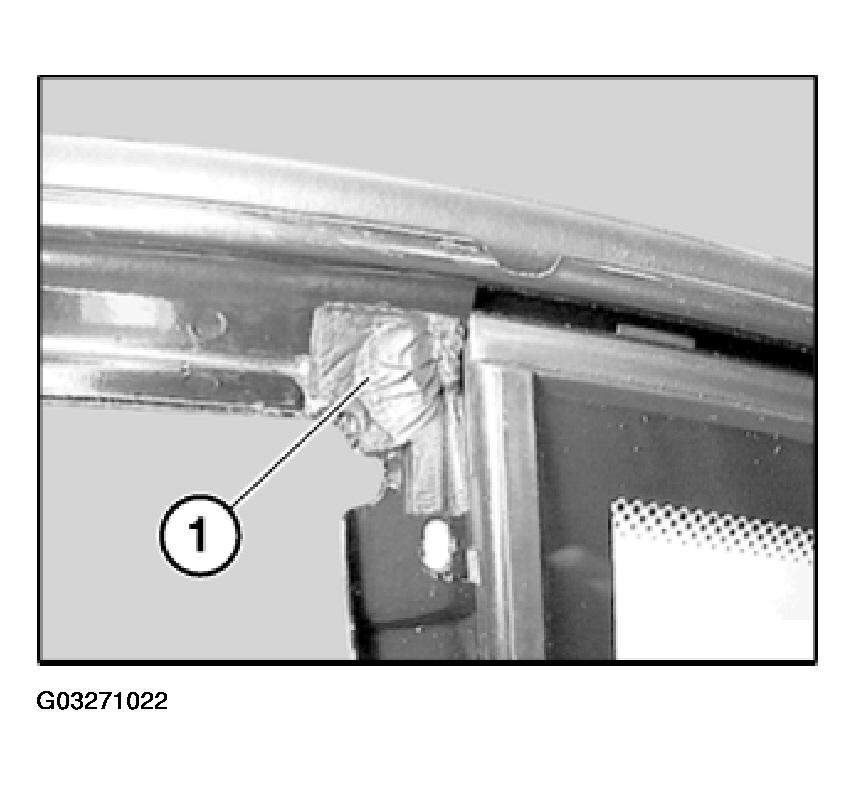

Foam section (1) must be fitted.

Fig 5: Identifying Foam Section

Courtesy of BMW OF NORTH AMERICA, INC.
