51 16 201 Replacing storage compartment

Necessary Preliminary Tasks:

• Remove storage compartment. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
• Remove controller. Refer to 61 31 195 REMOVING AND INSTALLING (REPLACING) FRONT CONTROLLER .

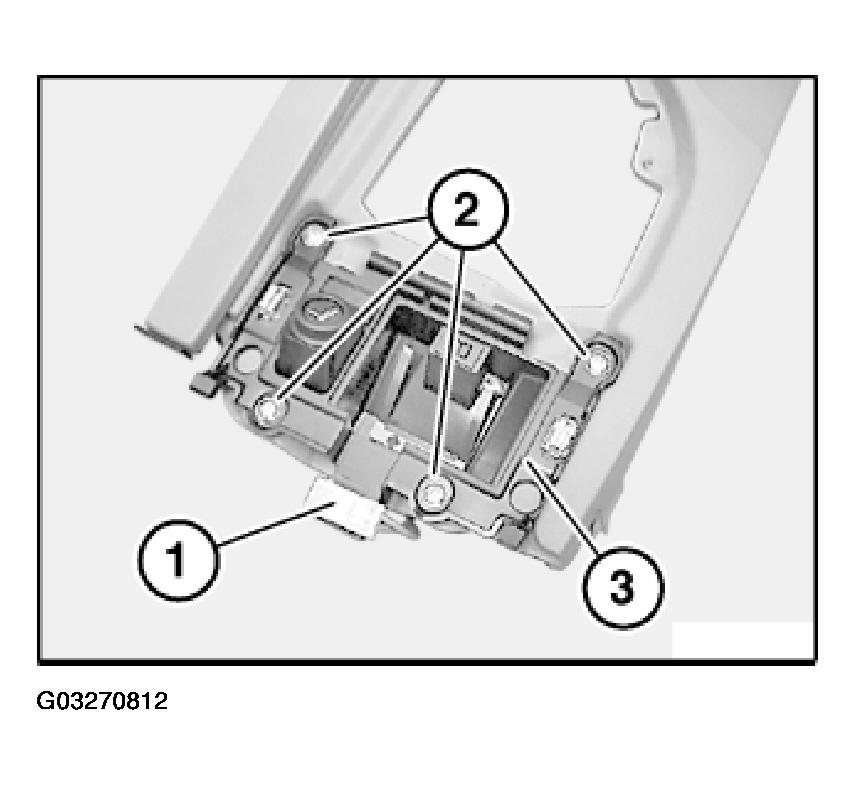

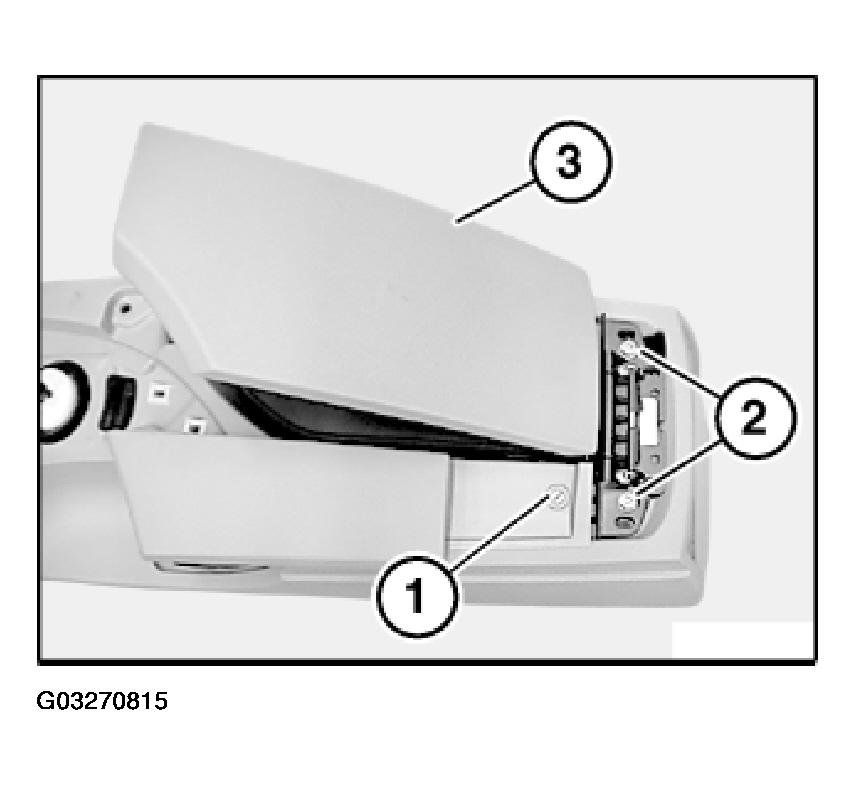

Disconnect plug (1).

Release screws (2) and lift out insert (3).

Fig 1: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

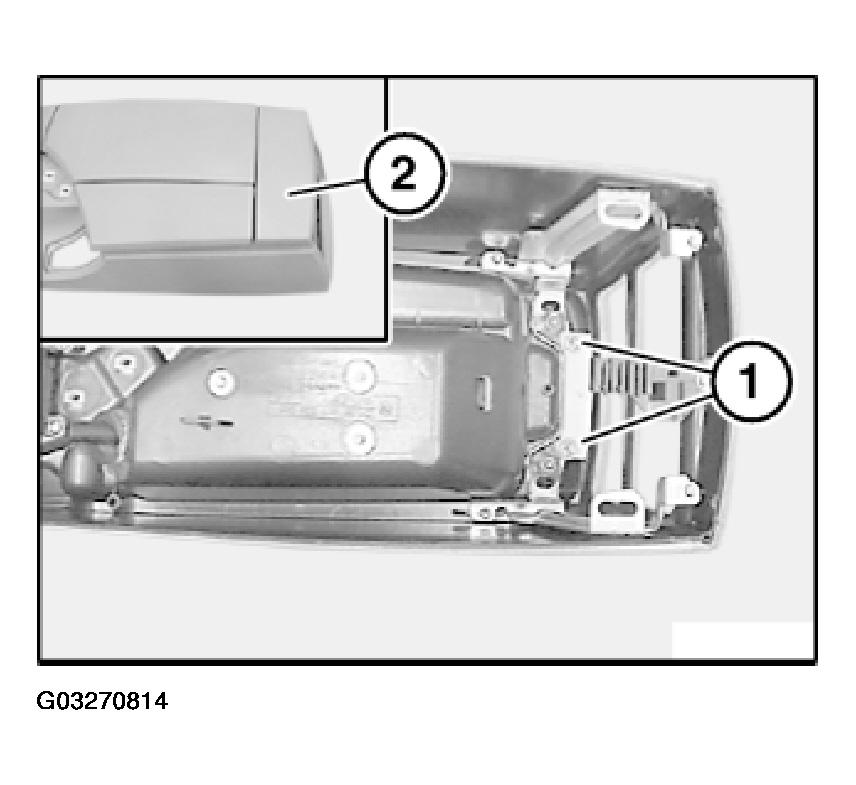

Release screws (1) on inside of storage compartment and remove trim (2).

Fig 2: Removing Storage Compartment Trim

Courtesy of BMW OF NORTH AMERICA, INC.

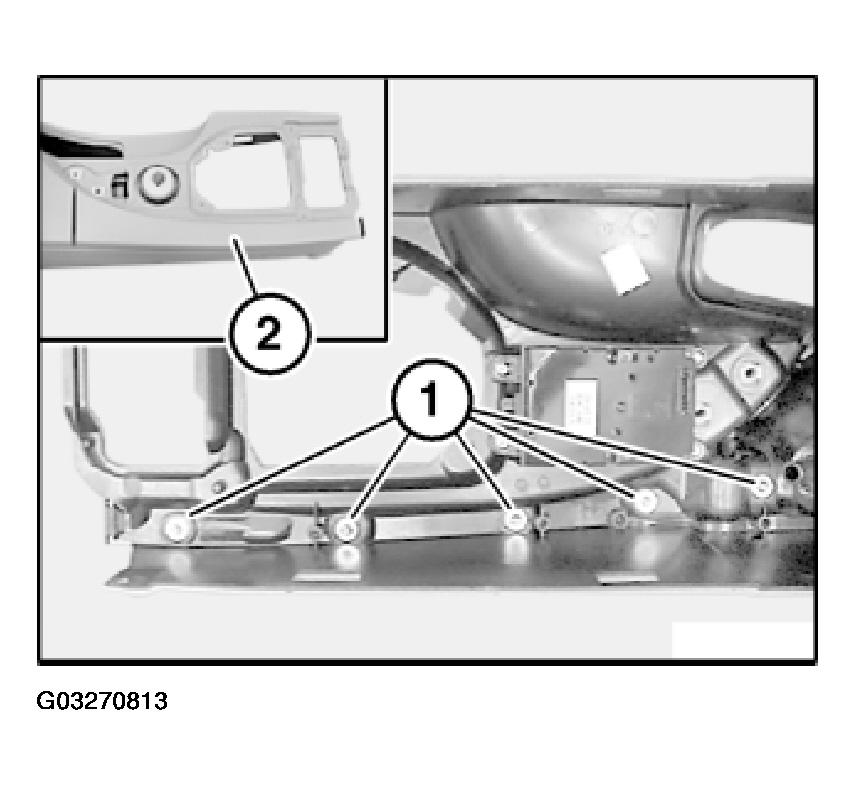

Release nuts (1) on inside of storage compartment and remove trim (2).

Fig 3: Locating Nuts On Inside Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever out trim (1) and release screw underneath.

Release screws (2) and feed out guide cover (3) towards rear.

Fig 4: Identifying Screws For Guide Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with center armrest/storage tray:

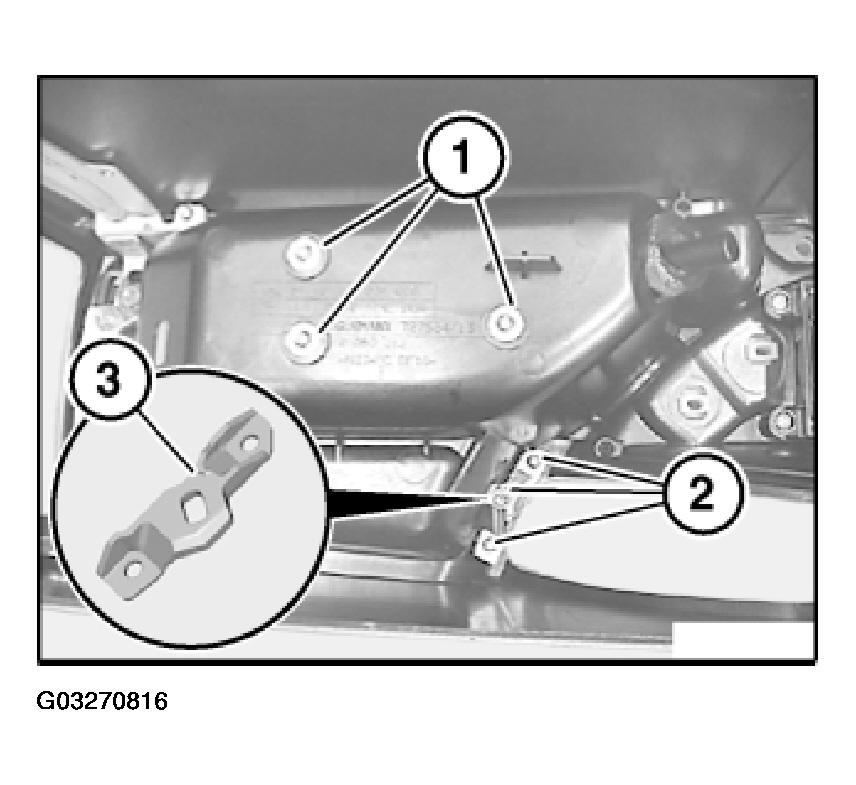

Release screws (1).

Release screws (2) and remove bracket (3).

Fig 5: Removing Tray Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

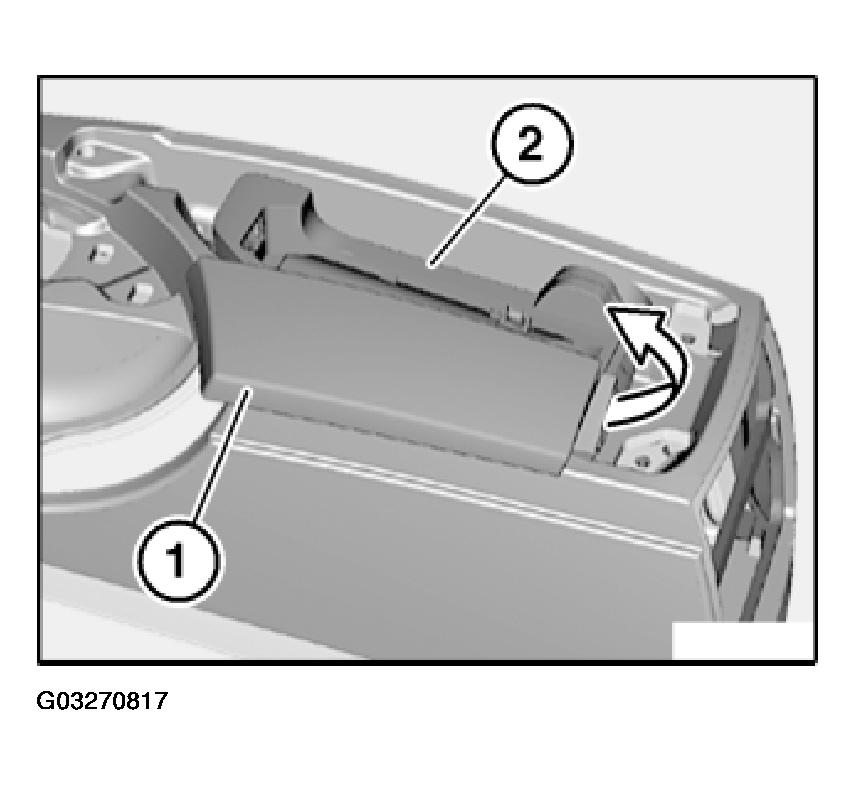

Feed out center armrest (1) with storage tray (2) towards top rear.

Fig 6: Removing Center Armrest With Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Security version:

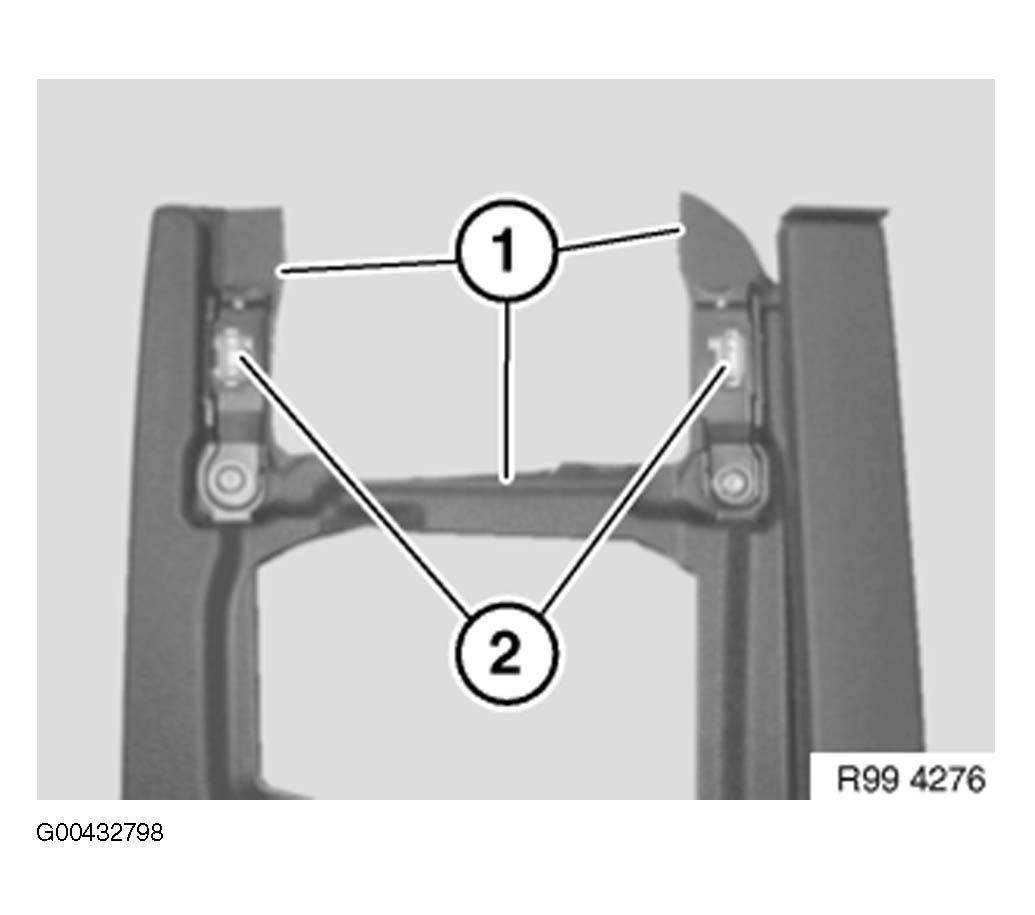

Cut storage compartment as illustrated (1).

If necessary, replace faulty retaining clips (2).

Fig 7: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
