51 23 211 Removing and installing/replacing cable for front engine hood locks (to passenger compartment)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Disconnect cable for hood/bonnet locks. Refer to 51 23 100 REMOVING AND INSTALLING/REPLACING RIGHT ENGINE HOOD/BONNET LOCK .
Remove lower section of microfilter housing. Refer to 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION .
Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove footwell side trim panel on A-pillar. Refer to 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .

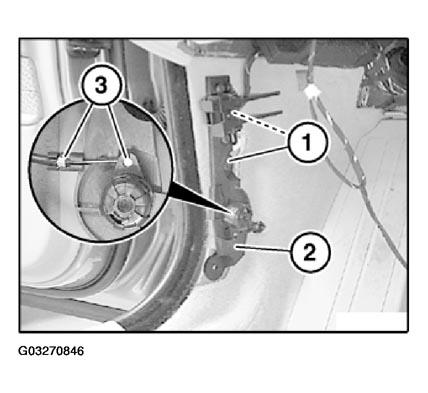

Release screws (1).

Remove fixture (2) and feed out Bowden cable (3).

Fig 1: Locating Fixture With Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

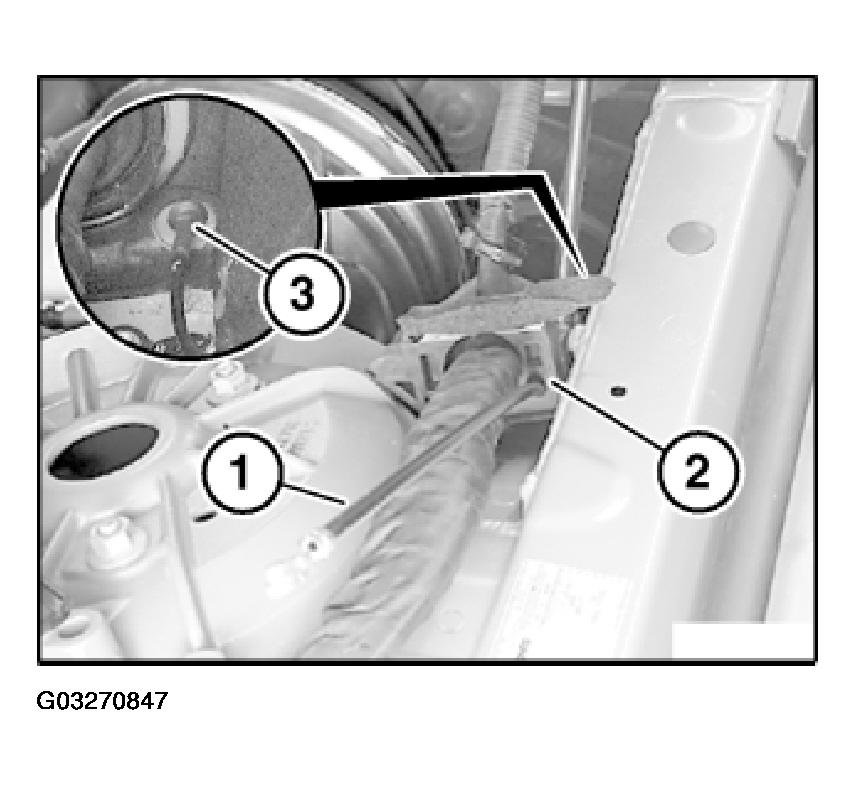

Feed Bowden cable (1) out of grommet (2).

Carefully feed Bowden cable (1) with grommet (3) out of vehicle interior.

IMPORTANT: Make sure grommets (2 and 3) are correctly seated (water ingress).

Installation:

Lay Bowden cable (1) without kinks.

Fig 2: View Of Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
