51 23 100 Removing and installing/replacing right engine hood/bonnet lock

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

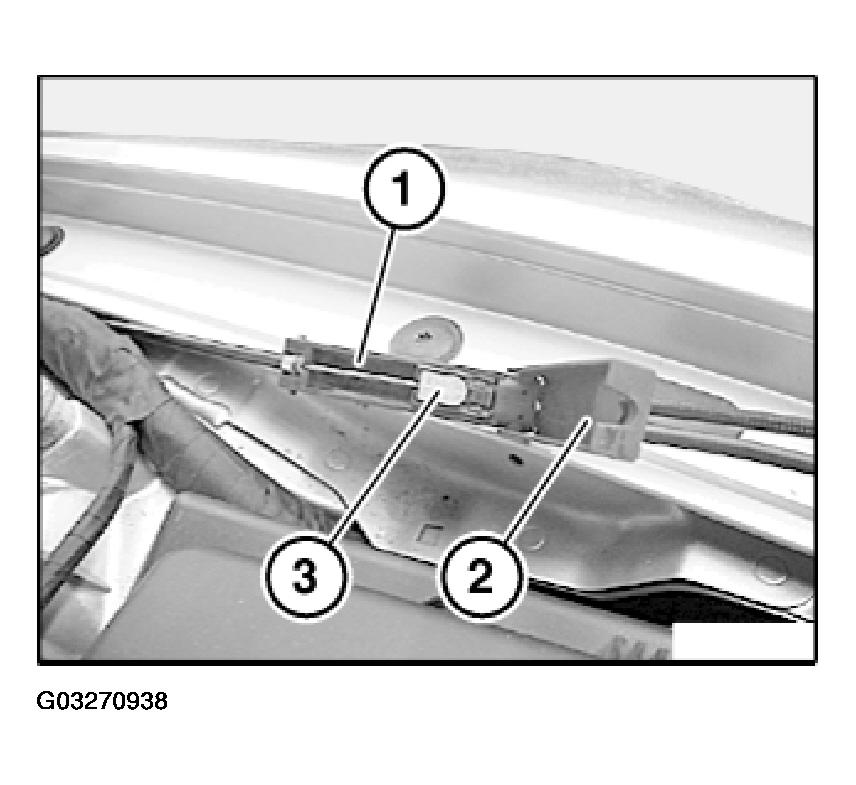

Unclip coupling (1) with special tool 00 9 317 from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

NOTE: The operation "Disconnect pull cable for hood/bonnet locks" ends here.

Fig 1: View Of Coupling From Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

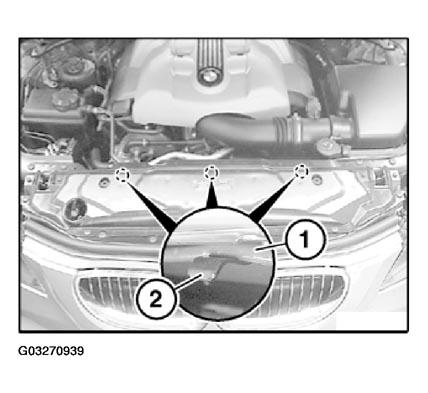

Release Bowden cable (1) from holder (2).

Fig 2: Identifying Bowden Cable And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

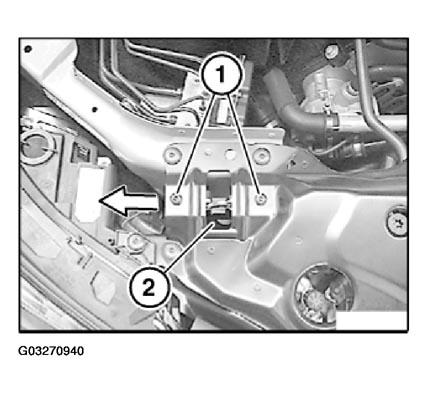

Release screws (1).

Feed out hood/bonnet lock (2) in direction of arrow.

Tightening torque, refer to 51 23 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Fig 3: Locating Hood/Bonnet Lock Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

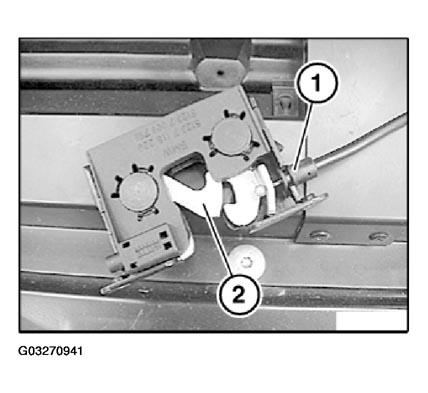

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (2).

Fig 4: View Of Bowden Cable In Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
