61 31 037 Removing and installing/replacing lighting control unit

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

64 1 020

Attach special tool 64 1 020 at openings (1) and lever out catches (2).

Pull back lighting control unit (3).

Unlock and disconnect associated plug connection, remove lighting control unit (3).

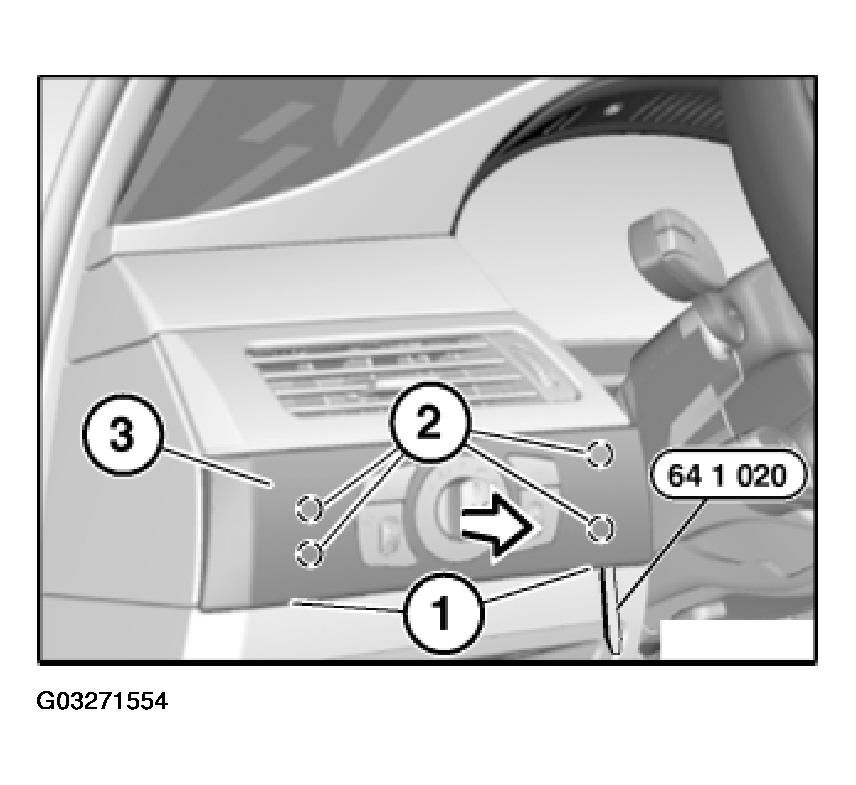

Fig 1: Removing Lighting Control Unit Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clips (1) are correctly seated on trim of lighting control units (2).

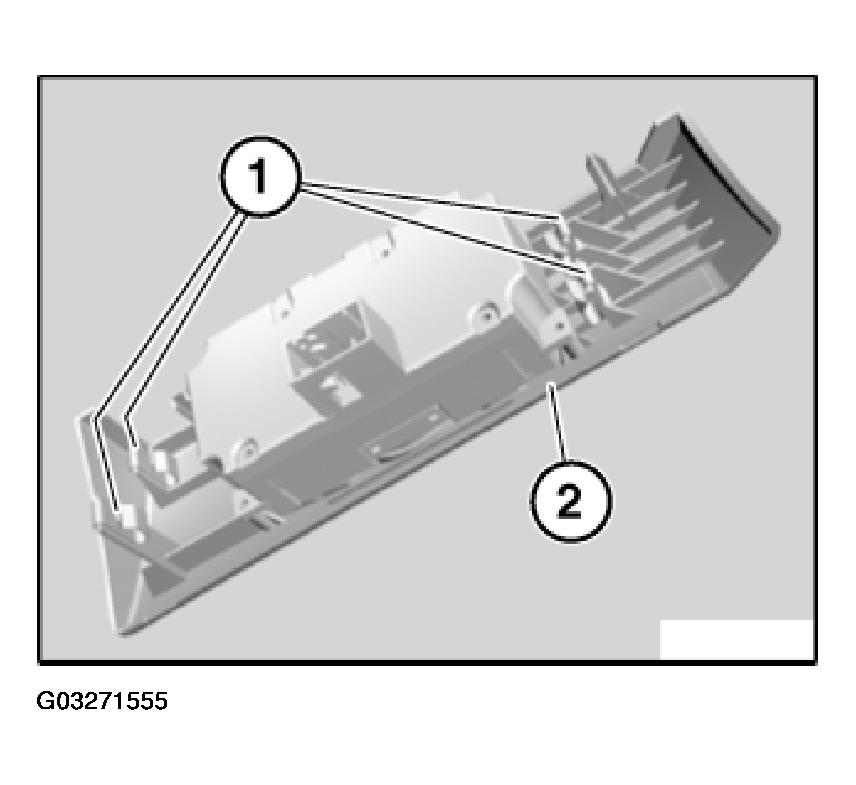

Fig 2: Identifying Lighting Control Unit Clips

Courtesy of BMW OF NORTH AMERICA, INC.
