51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open door window to 205 mm.

Remove sound insulation in front door. Refer to 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR .

Door window glass (1) must be opened to dimension (A).

A = approx. 205 mm.

Release screws (2).

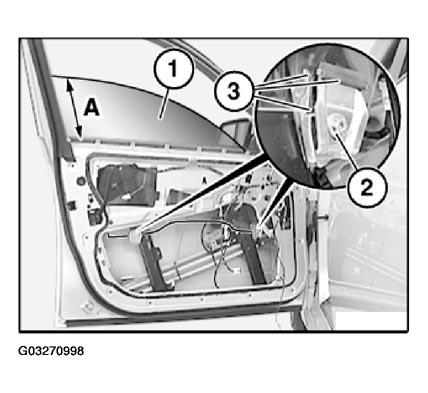

Fig 1: View Of Door Window Glass Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber (3) must be correctly fitted.

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Turn door window glass and lift out towards rear/top.

Installation:

Adjust door window glass. Refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .

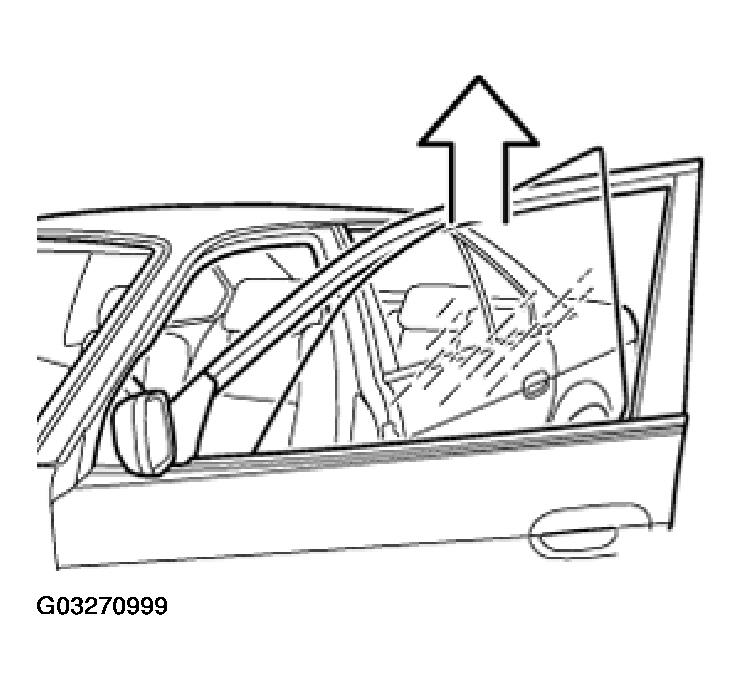

Fig 2: Turning Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
